Step1: Product
NKK Switches MS12AFW01

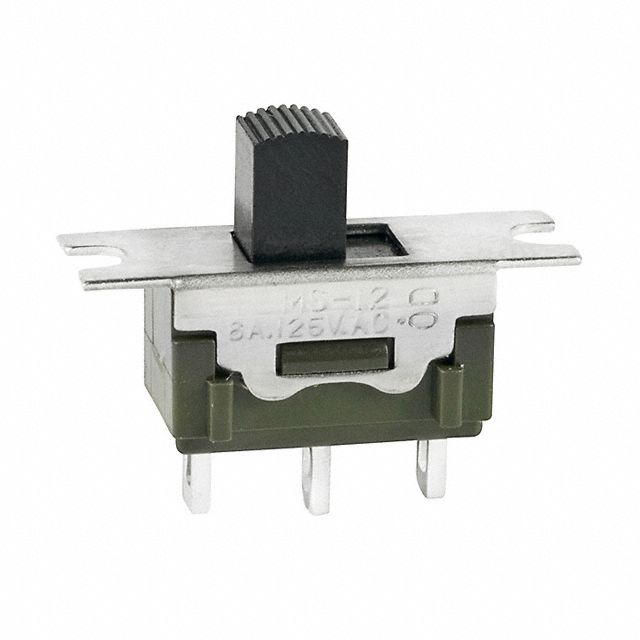

Image shown is a representation only
Manufacturer
Manufacturer No
MS12AFW01
Packaging
Tray
Description
MINIATURE SLIDE
Detailed Description
Slide Switch SPDT Panel Mount
DataSheet
Series
MS
Circuit
SPDT
Features
Epoxy Sealed Terminals
Packaging
Tray
Part Status
Obsolete
Manufacturer
NKK Switches
Actuator Type
Standard
Mounting Type
Panel Mount
Switch Travel
2.20mm
Contact Finish
Silver
Contact Timing
Non-Shorting (BBM)
Actuator Length
5.10mm
Electrical Life
25,000 Cycles
Mechanical Life
100,000 Cycles
Switch Function
On-On
Contact Material
Silver Alloy
Actuator Material
Polybutylene Terephthalate (PBT), Glass Filled
Termination Style
Solder Lug
Voltage Rating - AC
125 V
Current Rating (Amps)
6A (AC)
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | MS |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Tray |
| Part Status | Obsolete |
| Manufacturer | NKK Switches |
| Actuator Type | Standard |
| Mounting Type | Panel Mount |
| Switch Travel | 2.20mm |
| Contact Finish | Silver |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 5.10mm |
| Electrical Life | 25,000 Cycles |
| Mechanical Life | 100,000 Cycles |
| Switch Function | On-On |
| Contact Material | Silver Alloy |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Current Rating (Amps) | 6A (AC) |
| Operating Temperature | -30°C ~ 85°C |
