Step1: Product
Nidec Components CS-4-12YA

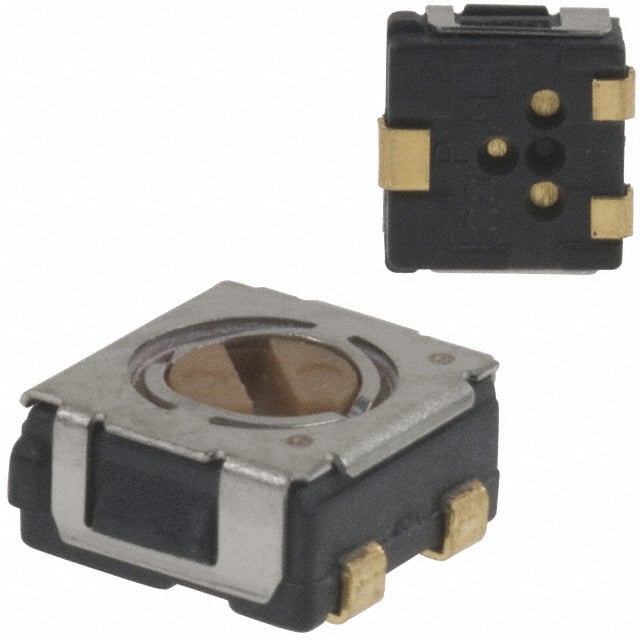

Image shown is a representation only
Manufacturer
Manufacturer No
CS-4-12YA
Packaging
Bulk
Description
SWITCH DIP ROTARY SPDT 100MA 16V
Detailed Description
Dip Switch SPDT 2 Position Surface Mount Rotary for Tool Actuator 100mA 16VDC
DataSheet
Length
0.197" (5.00mm)
Series
CS-4
Circuit
SPDT
Washable
Yes
Packaging
Bulk
Part Status
Active
Manufacturer
Nidec Components
Actuator Type
Rotary for Tool
Body Material
Epoxy
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
16VDC
Electrical Life
200 Cycles
Contact Material
Copper Alloy
Termination Style
J Lead
Height Above Board
0.091" (2.30mm)
Base Product Number
CS-4-12
Number of Positions
2
Current Rating (Amps)
100mA
Operating Temperature
-25°C ~ 70°C
| Attribute | Value |
|---|---|
| Length | 0.197" (5.00mm) |
| Series | CS-4 |
| Circuit | SPDT |
| Washable | Yes |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Nidec Components |
| Actuator Type | Rotary for Tool |
| Body Material | Epoxy |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 16VDC |
| Electrical Life | 200 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | J Lead |
| Height Above Board | 0.091" (2.30mm) |
| Base Product Number | CS-4-12 |
| Number of Positions | 2 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -25°C ~ 70°C |
