Step1: Product

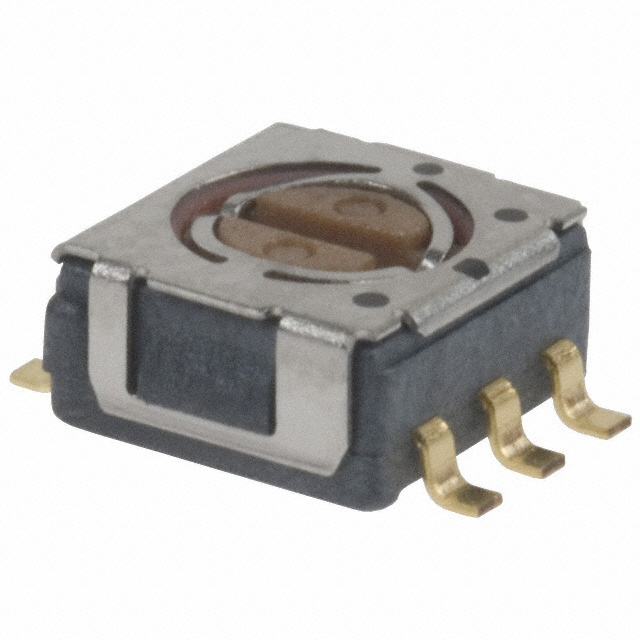

Nidec Components CS-4-14NB
Image shown is a representation only
Manufacturer
Manufacturer No
CS-4-14NB
Quantity
50
Availability
In Stock
Packaging
Bulk
Description
SWITCH ROTARY DIP SP4T 0.1A 16V
Detailed Description
Dip Switch SP4T 4 Position Surface Mount Rotary for Tool Actuator 100mA 16VDC
DataSheet
Pitch
0.051" (1.30mm)
Length
0.197" (5.00mm)
Series
CS-4
Circuit
SP4T
Washable
Yes
Packaging
Bulk
Part Status
Active
Manufacturer
Nidec Components
Actuator Type
Rotary for Tool
Body Material
Liquid Crystal Polymer (LCP)
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
16VDC
Electrical Life
200 Cycles
Contact Material
Copper Alloy
Termination Style
Gull Wing
Height Above Board
0.091" (2.30mm)
Base Product Number
CS-4-14
Number of Positions
4
Current Rating (Amps)
100mA
Operating Temperature
-25°C ~ 70°C
| Attribute | Value |
|---|---|
| Pitch | 0.051" (1.30mm) |
| Length | 0.197" (5.00mm) |
| Series | CS-4 |
| Circuit | SP4T |
| Washable | Yes |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Nidec Components |
| Actuator Type | Rotary for Tool |
| Body Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 16VDC |
| Electrical Life | 200 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.091" (2.30mm) |
| Base Product Number | CS-4-14 |
| Number of Positions | 4 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -25°C ~ 70°C |
