Step1: Product
Nidec Components CFS-0802TA

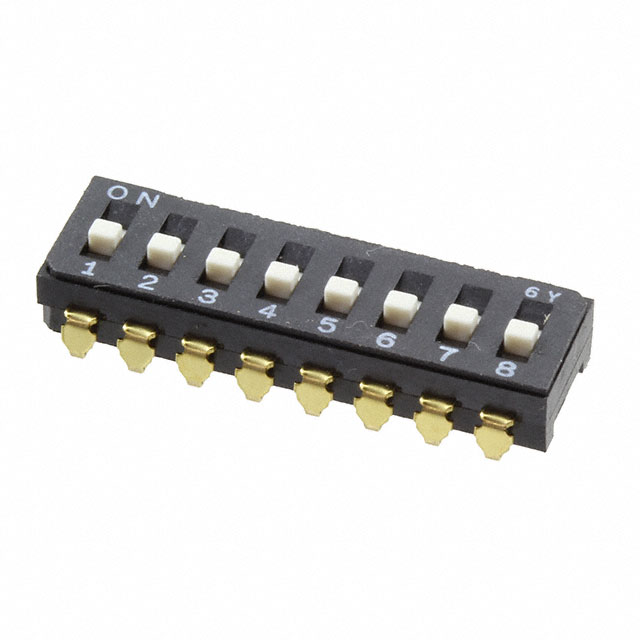

Image shown is a representation only
Manufacturer
Manufacturer No
CFS-0802TA
Quantity
1542
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH SLIDE DIP SPST 0.1A 6V
Detailed Description
Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.858" (21.80mm)
Series
CFS
Circuit
SPST
Washable
No
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Nidec Components
Actuator Type
Slide (Standard)
Body Material
Polyphenylene Sulfide (PPS)
Mounting Type
Surface Mount
Actuator Level
Raised
Contact Finish
Gold
Voltage Rating
6VDC
Electrical Life
1,000 Cycles
Contact Material
Copper Alloy
Termination Style
J Lead
Height Above Board
0.177" (4.50mm)
Base Product Number
CFS-0802
Number of Positions
8
Current Rating (Amps)
100mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.858" (21.80mm) |
| Series | CFS |
| Circuit | SPST |
| Washable | No |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Nidec Components |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Surface Mount |
| Actuator Level | Raised |
| Contact Finish | Gold |
| Voltage Rating | 6VDC |
| Electrical Life | 1,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | J Lead |
| Height Above Board | 0.177" (4.50mm) |
| Base Product Number | CFS-0802 |
| Number of Positions | 8 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 85°C |
