Step1: Product

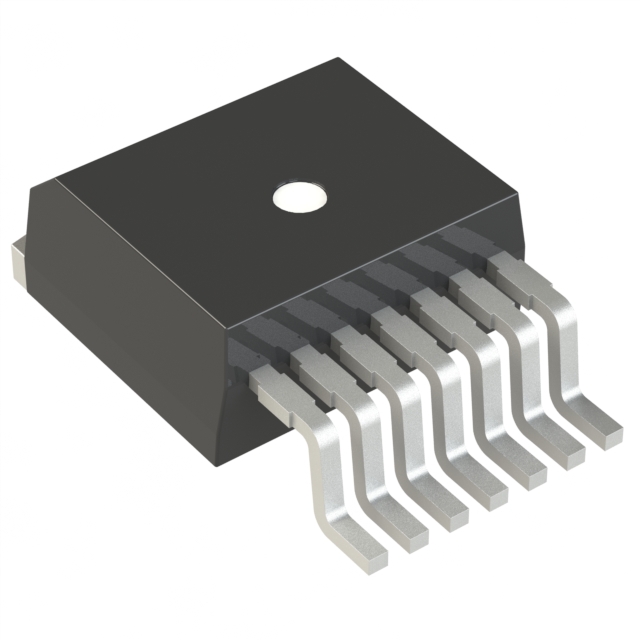

Navitas Semiconductor, Inc. G3R350MT12J-TR
Image shown is a representation only
Manufacturer
Manufacturer No
G3R350MT12J-TR
Quantity
5
Availability
In Stock
Package
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
1200V 350M TO-263-7 G3R SIC MOSF
Detailed Description
N-Channel 1200 V 10A (Tc) 64W (Tc) Surface Mount TO-263-7
DataSheet
Mfr
Navitas Semiconductor, Inc.
Series
G3R™, LoRing™
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
+22V, -10V
Technology
SiCFET (Silicon Carbide)
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Vgs(th) (Max) @ Id
2.7V @ 2mA
Operating Temperature
-55°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
395mOhm @ 4A, 18V
Power Dissipation (Max)
64W (Tc)
Supplier Device Package
TO-263-7
Gate Charge (Qg) (Max) @ Vgs
10 nC @ 15 V
Drain to Source Voltage (Vdss)
1200 V
Input Capacitance (Ciss) (Max) @ Vds
331 pF @ 800 V
Drive Voltage (Max Rds On, Min Rds On)
15V, 18V
Current - Continuous Drain (Id) @ 25°C
10A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Navitas Semiconductor, Inc. |
| Series | G3R™, LoRing™ |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | +22V, -10V |
| Technology | SiCFET (Silicon Carbide) |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Vgs(th) (Max) @ Id | 2.7V @ 2mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 395mOhm @ 4A, 18V |
| Power Dissipation (Max) | 64W (Tc) |
| Supplier Device Package | TO-263-7 |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 15 V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 331 pF @ 800 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
