Step1: Product
Molex MM-422-100-2A3-6200

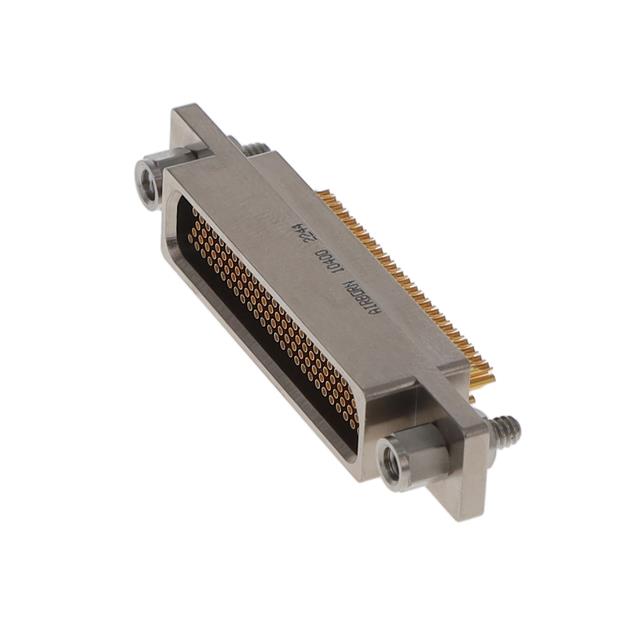

Image shown is a representation only
Manufacturer
Manufacturer No
MM-422-100-2A3-6200
Packaging
Bulk
Description
CONN MICRO-D RCPT 100P SLDR CUP
Detailed Description
100 Position D-Type, Micro-D Receptacle, Female Sockets Connector
DataSheet
Mfr
Molex
Series
M
Packaging
Bulk
Wire Gauge
24 AWG
Part Status
Active
Termination
Solder Cup
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
4
Connector Style
D-Type, Micro-D
Contact Material
Brass
Primary Material
Metal
Dielectric Material
Polyphenylene Sulfide (PPS)
Number of Positions
100
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Aluminum Alloy, Nickel Plated, Electroless
Contact Finish Thickness
50.0µin (1.27µm)
Shell Size, Connector Layout
0.050 Pitch x 0.050 Row to Row
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Series | M |
| Packaging | Bulk |
| Wire Gauge | 24 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 4 |
| Connector Style | D-Type, Micro-D |
| Contact Material | Brass |
| Primary Material | Metal |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| Number of Positions | 100 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Aluminum Alloy, Nickel Plated, Electroless |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
