Step1: Product
Molex 1727040039

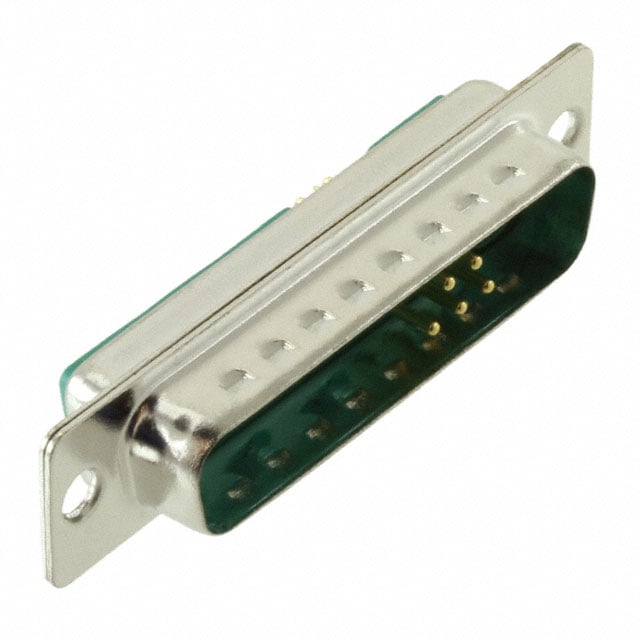

Image shown is a representation only
Manufacturer
Manufacturer No
1727040039
Quantity
30
Availability
In Stock
Packaging
Bulk
Description
CONN D-SUB PLUG 9POS PNL MNT
Detailed Description
9 (5 + 4 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
Mfr
Molex
Color
Green
Series
172704
Features
Grounding Indents
Packaging
Bulk
Wire Gauge
20 AWG
Part Status
Active
Termination
Solder Cup
Contact Type
Signal and Coax or Power (Not Included)
Mounting Type
Panel Mount
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Connector Style
D-Sub, Combo
Contact Material
Brass
Base Product Number
172704
Dielectric Material
Polybutylene Terephthalate (PBT)
Number of Positions
9 (5 + 4 Coax or Power)
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 130°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B) - 9W4
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Color | Green |
| Series | 172704 |
| Features | Grounding Indents |
| Packaging | Bulk |
| Wire Gauge | 20 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Type | Signal and Coax or Power (Not Included) |
| Mounting Type | Panel Mount |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Connector Style | D-Sub, Combo |
| Contact Material | Brass |
| Base Product Number | 172704 |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 9 (5 + 4 Coax or Power) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 130°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
