Step1: Product

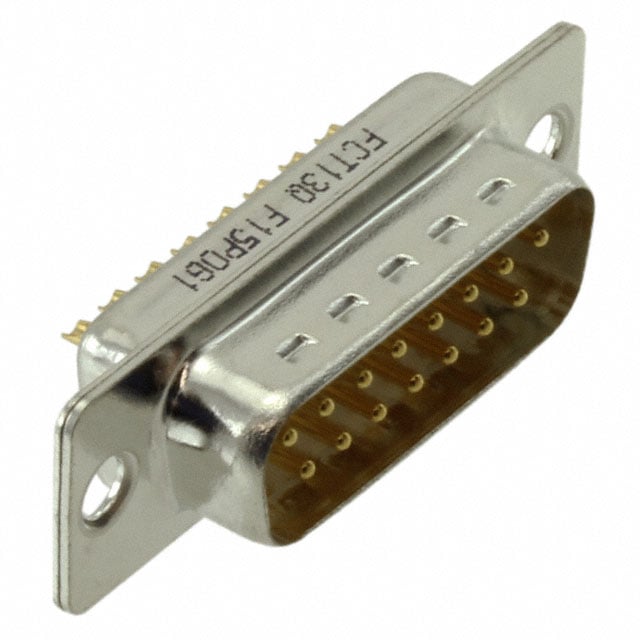

Molex 1727040063
Image shown is a representation only
Manufacturer
Manufacturer No
1727040063
Quantity
20
Availability
In Stock
Packaging
Bulk
Description
CONN D-SUB PLUG 15POS SOLDER CUP
Detailed Description
15 Position D-Sub Plug, Male Pins Connector
DataSheet
Mfr
Molex
Color
White
Series
F, FCT 172704
Features
Grounding Indents
Packaging
Bulk
Wire Gauge
20 AWG
Part Status
Active
Termination
Solder Cup
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
172704
Dielectric Material
Polybutylene Terephthalate (PBT)
Number of Positions
15
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Shell Size, Connector Layout
2 (DA, A)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Color | White |
| Series | F, FCT 172704 |
| Features | Grounding Indents |
| Packaging | Bulk |
| Wire Gauge | 20 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | 172704 |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 15 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 2 (DA, A) |
