Step1: Product

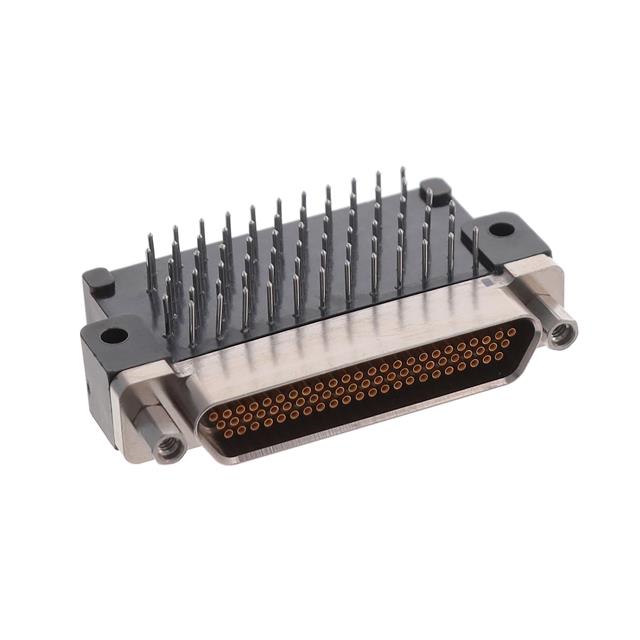

Molex MK-3S2-069-445-220S
Image shown is a representation only
Manufacturer
Manufacturer No
MK-3S2-069-445-220S
Packaging
Bulk
Description
CONN MICRO-D RCPT 69POS R/A SLDR
Detailed Description
69 Position D-Type, Micro-D Receptacle, Female Sockets Connector
DataSheet
Mfr
Molex
Series
M
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (2-56)
Number of Rows
3
Connector Style
D-Type, Micro-D
Contact Material
Brass
Primary Material
Metal
Dielectric Material
Polyphenylene Sulfide (PPS)
Number of Positions
69
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Aluminum Alloy, Nickel Plated, Electroless
Contact Finish Thickness
50.0µin (1.27µm)
Shell Size, Connector Layout
0.050 Pitch x 0.050 Row to Row
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Series | M |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Number of Rows | 3 |
| Connector Style | D-Type, Micro-D |
| Contact Material | Brass |
| Primary Material | Metal |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| Number of Positions | 69 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Aluminum Alloy, Nickel Plated, Electroless |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
