Step1: Product
Molex 2136020001

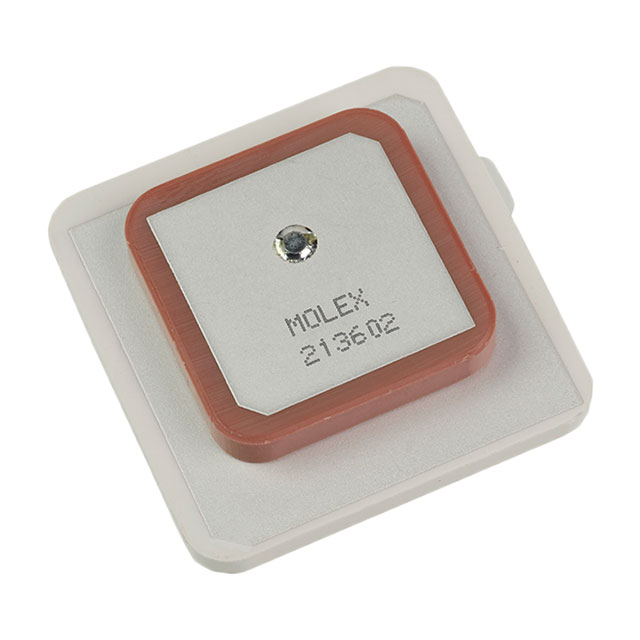

Image shown is a representation only
Manufacturer
Manufacturer No
2136020001
Packaging
Tray
Description
ANTENNA GPS L1/L2 STACKED
Detailed Description
RF ANTENNA GLONASS, GNSS, GPS Ceramic Patch Solder Adhesive
Datasheet
Gain
2.1dBi, 5.3dBi
Series
213602
Packaging
Tray
Return Loss
-15dB
Termination
Solder
Antenna Type
Ceramic Patch
Applications
GLONASS, GNSS, GPS
Height (Max)
0.276" (7.00mm)
Manufacturer
Molex
Mounting Type
Adhesive
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz
Number of Bands
2
RF Family/Standard
Navigation
Base Product Number
213602
Frequency (Center/Band)
1.2275GHz, 1.575GHz
| Attribute | Value |
|---|---|
| Gain | 2.1dBi, 5.3dBi |
| Series | 213602 |
| Packaging | Tray |
| Return Loss | -15dB |
| Termination | Solder |
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, GNSS, GPS |
| Height (Max) | 0.276" (7.00mm) |
| Manufacturer | Molex |
| Mounting Type | Adhesive |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Base Product Number | 213602 |
| Frequency (Center/Band) | 1.2275GHz, 1.575GHz |
