Step1: Product
Molex 1461530100

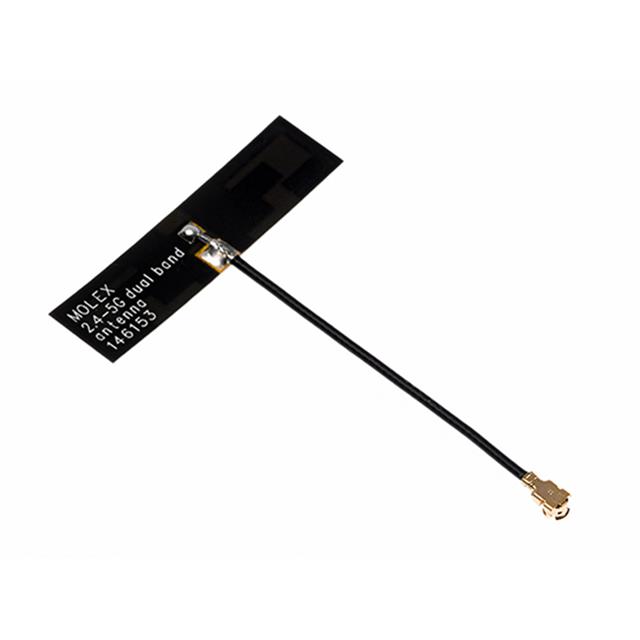

Image shown is a representation only
Manufacturer
Manufacturer No
1461530100
Quantity
89
Availability
In Stock
Packaging
Bulk
Description
RF ANT 2.4/5GHZ FLAT PATCH 100MM
Detailed Description
RF ANTENNA WLAN, Zigbee™ Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
3dBi, 4.5dBi
Series
146153
Features
Cable - 100mm
Packaging
Bulk
Part Status
Active
Power - Max
2 W
Return Loss
-10dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
WLAN, Zigbee™
Height (Max)
0.004" (0.10mm)
Manufacturer
Molex
Mounting Type
Adhesive
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz
Number of Bands
2
RF Family/Standard
802.15.4, WiFi
Base Product Number
146153
Frequency (Center/Band)
2.4GHz, 5GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi, 4.5dBi |
| Series | 146153 |
| Features | Cable - 100mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 2 W |
| Return Loss | -10dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | WLAN, Zigbee™ |
| Height (Max) | 0.004" (0.10mm) |
| Manufacturer | Molex |
| Mounting Type | Adhesive |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz |
| Number of Bands | 2 |
| RF Family/Standard | 802.15.4, WiFi |
| Base Product Number | 146153 |
| Frequency (Center/Band) | 2.4GHz, 5GHz |
