Step1: Product
Molex 2065600100

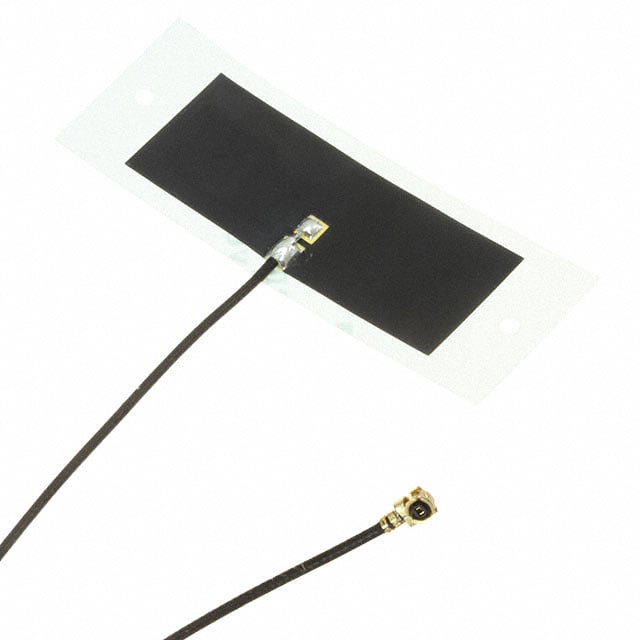

Image shown is a representation only
Manufacturer
Manufacturer No
2065600100
Quantity
59
Availability
In Stock
Packaging
Box
Description
1558MHZ-1610MHZ GNSS FLEX ANT 1
Detailed Description
RF ANTENNA Beidou, GLONASS, GNSS, GPS Flat Patch I-PEX MHF, U.FL Adhesive
Gain
0.9dBi, 1dBi, 1.37dBi
Series
206560
Features
Cable - 100mm
Packaging
Box
Part Status
Active
Return Loss
-8dB
Termination
I-PEX MHF, U.FL
Antenna Type
Flat Patch
Applications
Beidou, GLONASS, GNSS, GPS
Height (Max)
0.004" (0.10mm)
Manufacturer
Molex
Mounting Type
Adhesive
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.558GHz ~ 1.564GHz, 1.572GHz ~ 1.578GHz, 1.599GHz ~ 1.605GHz
Number of Bands
3
RF Family/Standard
Navigation
Frequency (Center/Band)
1.561GHz, 1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 0.9dBi, 1dBi, 1.37dBi |
| Series | 206560 |
| Features | Cable - 100mm |
| Packaging | Box |
| Part Status | Active |
| Return Loss | -8dB |
| Termination | I-PEX MHF, U.FL |
| Antenna Type | Flat Patch |
| Applications | Beidou, GLONASS, GNSS, GPS |
| Height (Max) | 0.004" (0.10mm) |
| Manufacturer | Molex |
| Mounting Type | Adhesive |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.558GHz ~ 1.564GHz, 1.572GHz ~ 1.578GHz, 1.599GHz ~ 1.605GHz |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz |
