Step1: Product
Molex 2065600300

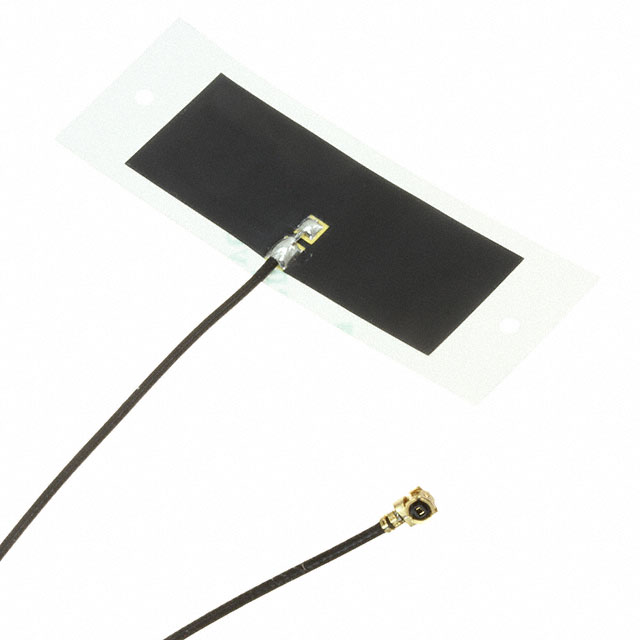

Image shown is a representation only
Manufacturer
Manufacturer No
2065600300
Quantity
8
Availability
In Stock
Packaging
Bulk
Description
RF ANT 1.561/1.575GHZ FLAT 300MM
Detailed Description
RF ANTENNA Beidou, GLONASS, GNSS, GPS Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
0.5dBi, 0.9dBi
Series
206560
Features
Cable - 300mm
Packaging
Bulk
Part Status
Active
Return Loss
-8dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
Beidou, GLONASS, GNSS, GPS
Height (Max)
0.004" (0.10mm)
Manufacturer
Molex
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
1.558GHz ~ 1.61GHz
Number of Bands
3
RF Family/Standard
Navigation
Base Product Number
206560
Frequency (Center/Band)
1.561GHz, 1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 0.5dBi, 0.9dBi |
| Series | 206560 |
| Features | Cable - 300mm |
| Packaging | Bulk |
| Part Status | Active |
| Return Loss | -8dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | Beidou, GLONASS, GNSS, GPS |
| Height (Max) | 0.004" (0.10mm) |
| Manufacturer | Molex |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 1.558GHz ~ 1.61GHz |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Base Product Number | 206560 |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz |
