Step1: Product

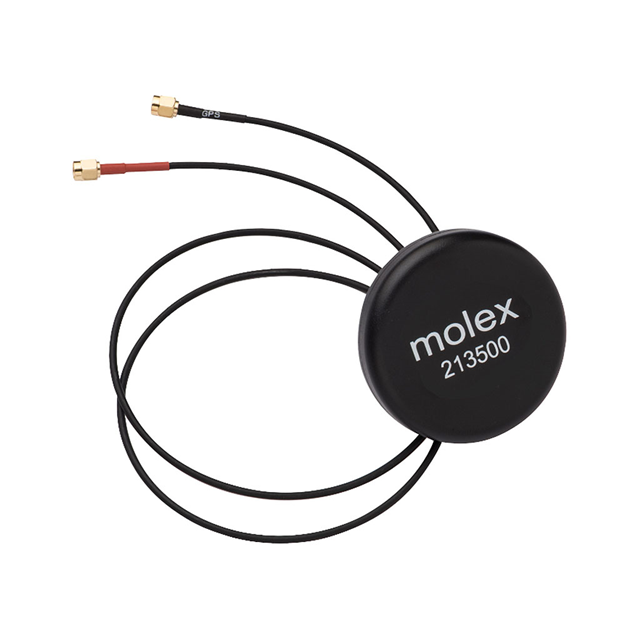

Molex 2135000500
Image shown is a representation only
Manufacturer
Manufacturer No
2135000500
Packaging
Box
Description
2-IN-1 LTE / GPS EXT ANTENNA 500
Detailed Description
RF ANTENNA LTE, GPS Module SMA Male (2) Adhesive, Panel Mount
DataSheet
Gain
0.77dBi, 0.77dBi, 3.73dBi
Series
213500
Features
Cable - 500mm
Packaging
Box
Part Status
Active
Return Loss
-5dB, 1.5dB
Termination
SMA Male (2)
Antenna Type
Module
Applications
LTE, GPS
Height (Max)
0.587" (14.90mm)
Manufacturer
Molex
Mounting Type
Adhesive, Panel Mount
Frequency Group
Wide Band
Frequency Range
824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.69GHz
Number of Bands
3
RF Family/Standard
Cellular, Navigation
Base Product Number
213500
Frequency (Center/Band)
892MHz, 1.575GHz, 2.2GHz
| Attribute | Value |
|---|---|
| Gain | 0.77dBi, 0.77dBi, 3.73dBi |
| Series | 213500 |
| Features | Cable - 500mm |
| Packaging | Box |
| Part Status | Active |
| Return Loss | -5dB, 1.5dB |
| Termination | SMA Male (2) |
| Antenna Type | Module |
| Applications | LTE, GPS |
| Height (Max) | 0.587" (14.90mm) |
| Manufacturer | Molex |
| Mounting Type | Adhesive, Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.69GHz |
| Number of Bands | 3 |
| RF Family/Standard | Cellular, Navigation |
| Base Product Number | 213500 |
| Frequency (Center/Band) | 892MHz, 1.575GHz, 2.2GHz |
