Step1: Product

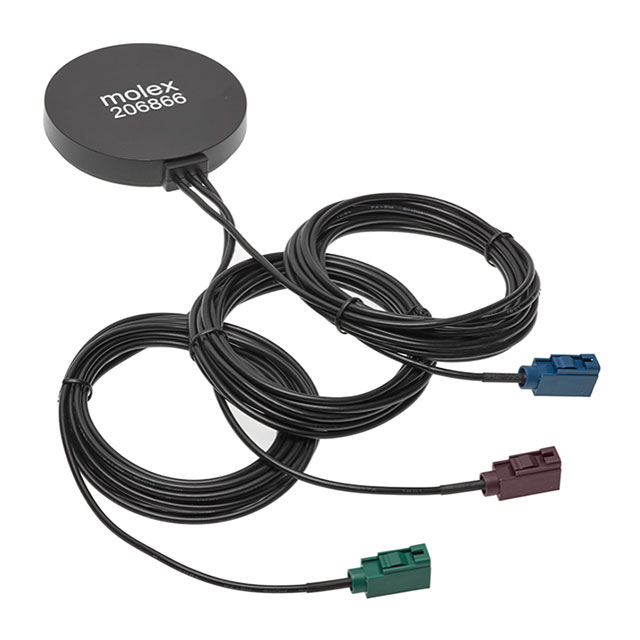

Molex 2068663000
Image shown is a representation only
Manufacturer
Manufacturer No
2068663000
Quantity
3
Availability
In Stock
Packaging
Box
Description
RF ANT 892MHZ/1.58GHZ SMB ADH
Detailed Description
RF ANTENNA Bluetooth, Cellular, GPS, Wi-Fi SMB, Fakra Adhesive
DataSheet
Gain
-0.5dBi, 3dBi, 0dBi, -2.7dBi
VSWR
3, 2
Series
206866
Features
Cable - 3m
Packaging
Box
Part Status
Active
Return Loss
-10dB, -6dB
Termination
SMB, Fakra
Applications
Bluetooth, Cellular, GPS, Wi-Fi
Height (Max)
0.591" (15.00mm)
Manufacturer
Molex
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.48GHz
Number of Bands
4
Ingress Protection
IP66
RF Family/Standard
Bluetooth, Cellular, Navigation, WiFi
Base Product Number
206866
Frequency (Center/Band)
892MHz, 1.58GHz, 2.2GHz, 2.44GHz
| Attribute | Value |
|---|---|
| Gain | -0.5dBi, 3dBi, 0dBi, -2.7dBi |
| VSWR | 3, 2 |
| Series | 206866 |
| Features | Cable - 3m |
| Packaging | Box |
| Part Status | Active |
| Return Loss | -10dB, -6dB |
| Termination | SMB, Fakra |
| Applications | Bluetooth, Cellular, GPS, Wi-Fi |
| Height (Max) | 0.591" (15.00mm) |
| Manufacturer | Molex |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.48GHz |
| Number of Bands | 4 |
| Ingress Protection | IP66 |
| RF Family/Standard | Bluetooth, Cellular, Navigation, WiFi |
| Base Product Number | 206866 |
| Frequency (Center/Band) | 892MHz, 1.58GHz, 2.2GHz, 2.44GHz |
