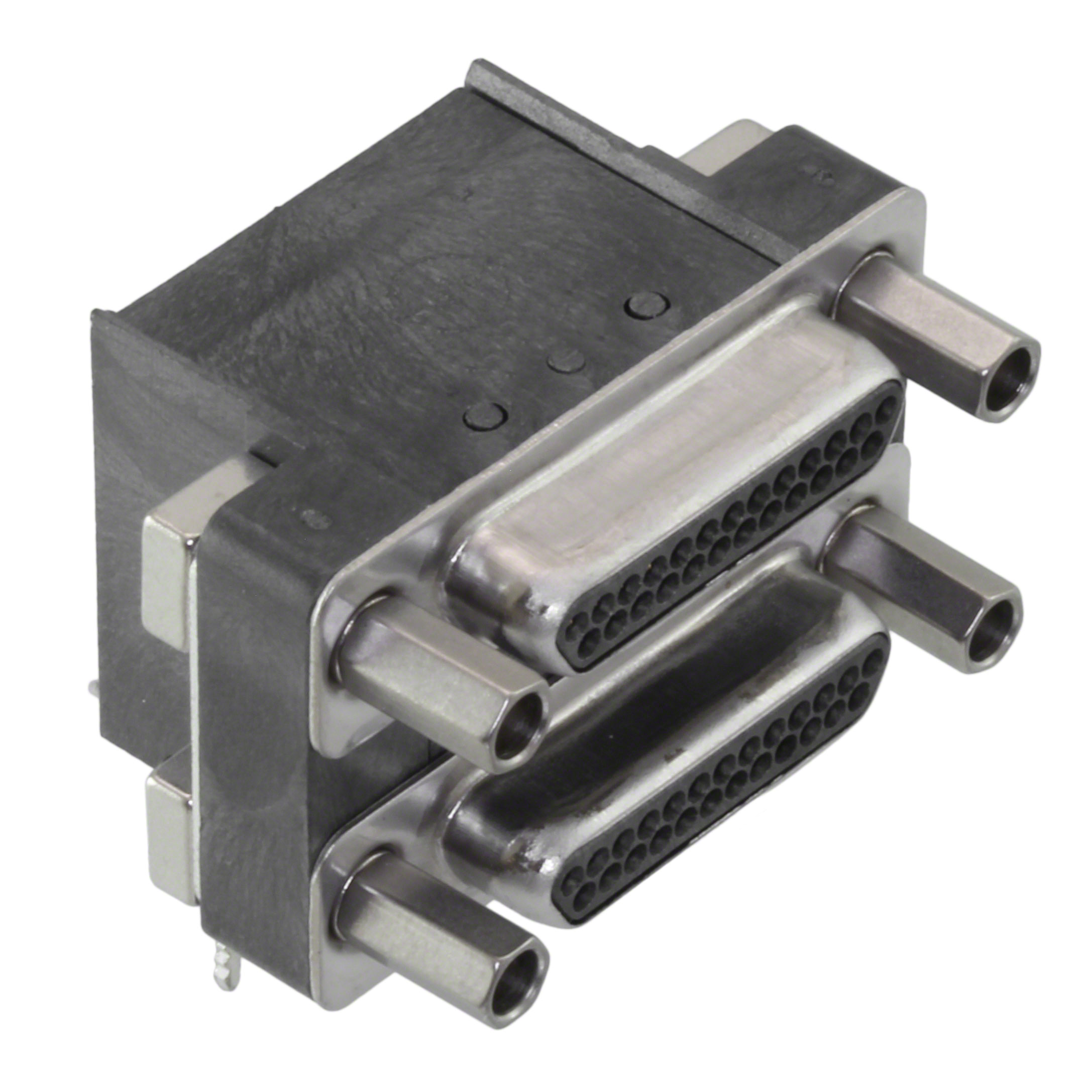

Molex 0836199011
Image shown is a representation only
Manufacturer
Manufacturer No
0836199011
Quantity
2
Availability
In Stock
Packaging
Tube
Description
CONN MICRO-D PLUG 25POS R/A SLDR
Detailed Description
25, 25 Position D-Type, Micro-D - Stacked Plug, Male Pins Connector
DataSheet
Mfr
Molex
Series
Commercial Micro-D Series 83619
Features
Board Lock, Shielded
Packaging
Tube
Part Status
Active
Termination
Solder
Contact Type
Signal
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (2-56)
Number of Rows
2, 2
Backset Spacing
0.268" (6.81mm)
Connector Style
D-Type, Micro-D - Stacked
Contact Material
Copper Alloy
Base Product Number
083619
Dielectric Material
Liquid Crystal Polymer (LCP)
Number of Positions
25, 25
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 125°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
15.0µin (0.38µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
0.050 Pitch x 0.050 Row to Row
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Series | Commercial Micro-D Series 83619 |
| Features | Board Lock, Shielded |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Number of Rows | 2, 2 |
| Backset Spacing | 0.268" (6.81mm) |
| Connector Style | D-Type, Micro-D - Stacked |
| Contact Material | Copper Alloy |
| Base Product Number | 083619 |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 25, 25 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
