Step1: Product
Molex 0532900680

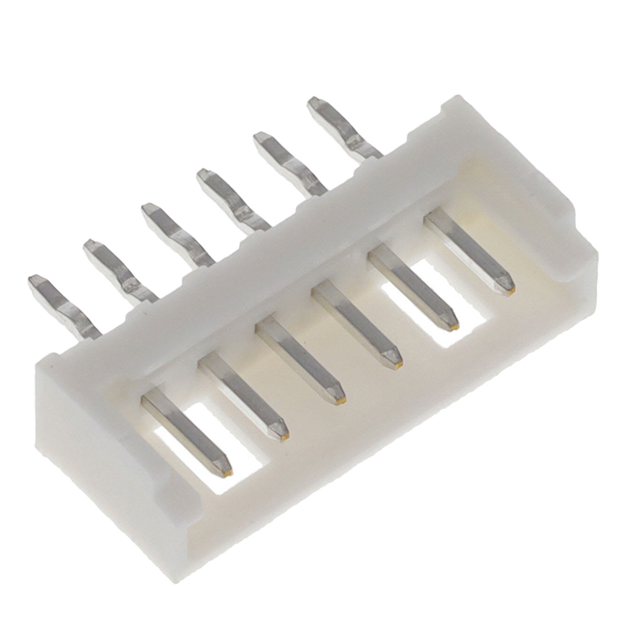

Image shown is a representation only
Manufacturer
Manufacturer No
0532900680
Packaging
Tray
Description
CONN HEADER VERT 6POS 2MM
Detailed Description
Connector Header Through Hole 6 position 0.079" (2.00mm)
Datasheet
Mfr
Molex
Style
Board to Board
Series
53290
Packaging
Tray
Shrouding
Shrouded - 3 Wall
Termination
Kinked Pin, Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.236" (6.00mm)
Base Product Number
053290
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
6
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Overall Contact Length
0.335" (8.51mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.130" (3.30mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board |
| Series | 53290 |
| Packaging | Tray |
| Shrouding | Shrouded - 3 Wall |
| Termination | Kinked Pin, Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.236" (6.00mm) |
| Base Product Number | 053290 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | 0.335" (8.51mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.130" (3.30mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
