Step1: Product

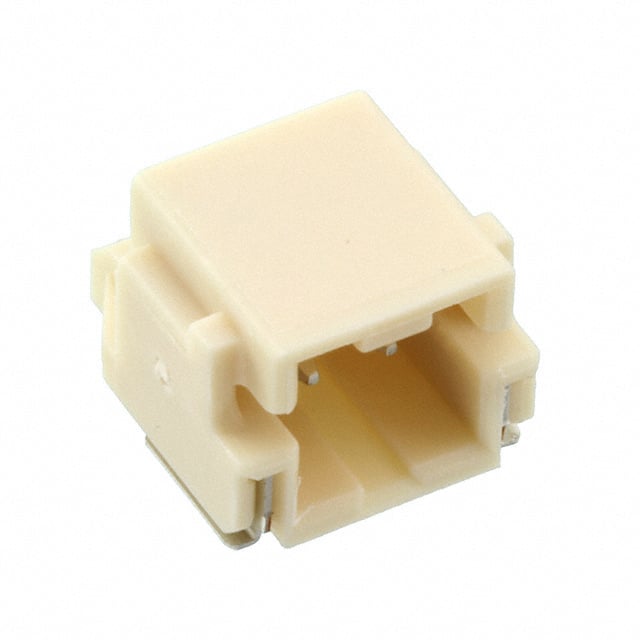

Molex 5023520200
Image shown is a representation only
Manufacturer
Manufacturer No
5023520200
Quantity
16,995
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD R/A 2POS 2MM
Detailed Description
Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm)
Datasheet
Mfr
Molex
Style
Board to Cable/Wire
Series
DuraClik 502352
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, Industrial
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.252" (6.40mm)
Base Product Number
502352
Insulation Material
Polyamide (PA), Nylon
Number of Positions
2
Contact Finish - Post
Tin
Contact Finish - Mating
Tin
Contact Length - Mating
0.136" (3.45mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | DuraClik 502352 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.252" (6.40mm) |
| Base Product Number | 502352 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.136" (3.45mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
