Step1: Product
Molex 0532901080

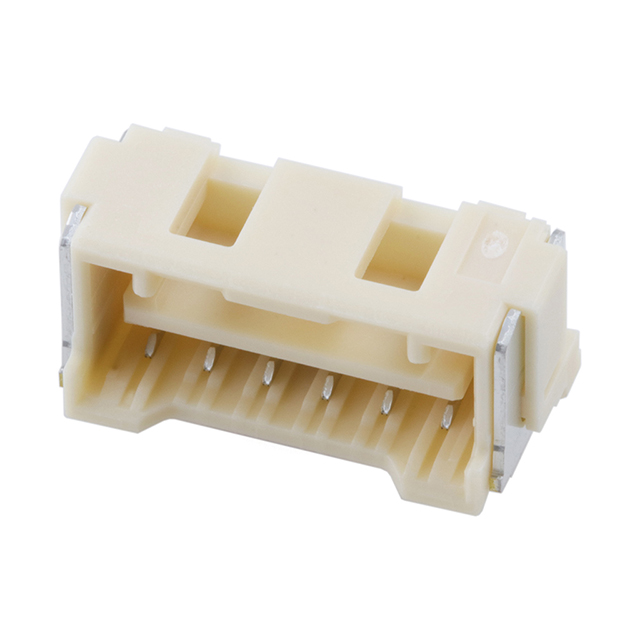

Image shown is a representation only
Manufacturer
Manufacturer No
0532901080
Packaging
Tray
Description
CONN HEADER VERT 10POS 2MM
Detailed Description
Connector Header Through Hole 10 position 0.079" (2.00mm)
DataSheet
Mfr
Molex
Style
Board to Board
Series
53290
Packaging
Tray
Shrouding
Shrouded - 3 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.236" (6.00mm)
Base Product Number
053290
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
10
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Overall Contact Length
0.335" (8.51mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.130" (3.30mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board |
| Series | 53290 |
| Packaging | Tray |
| Shrouding | Shrouded - 3 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.236" (6.00mm) |
| Base Product Number | 053290 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 10 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | 0.335" (8.51mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.130" (3.30mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
