MCC (Micro Commercial Components) MIP15R12P2STN-BP

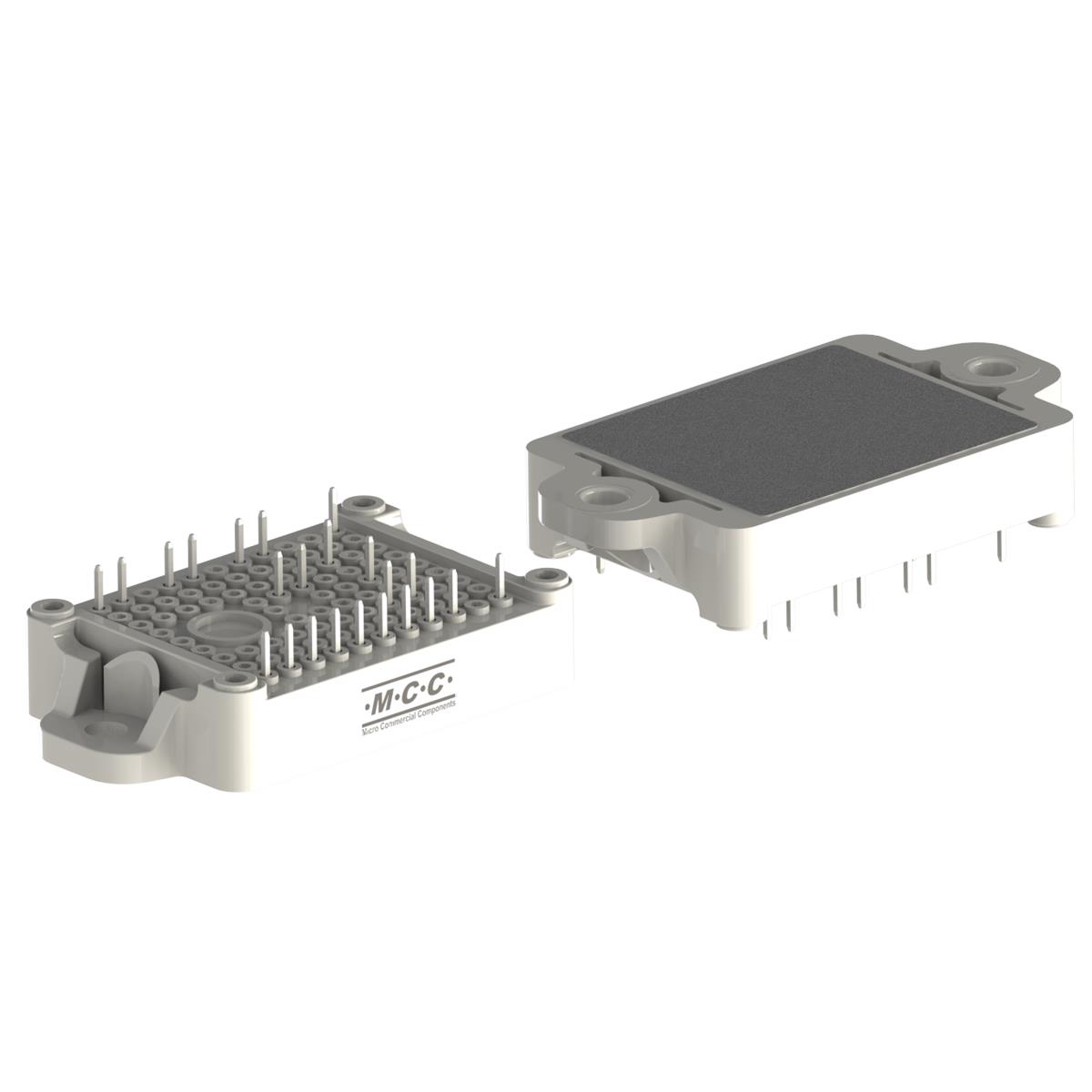

Image shown is a representation only
Manufacturer
Manufacturer No
MIP15R12P2STN-BP
Package
Module
Packaging
Bulk
Description
IGBT MODULE 1200V 15A 155W P2S
Detailed Description
IGBT Module Three Phase Inverter with Brake 1200 V 15 A 155 W Chassis Mount P2S
DataSheet
Input
Three Phase Bridge Rectifier
Packaging
Bulk
Part Status
Active
Power - Max
155 W
Manufacturer
MCC (Micro Commercial Components)
Configuration
Three Phase Inverter with Brake
Mounting Type
Chassis Mount
NTC Thermistor
Yes
Package / Case
Module
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
P2S
Vce(on) (Max) @ Vge, Ic
1.9V @ 15V, 15A
Current - Collector (Ic) (Max)
15 A
Input Capacitance (Cies) @ Vce
980 pF @ 25 V
Current - Collector Cutoff (Max)
1 mA
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Input | Three Phase Bridge Rectifier |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 155 W |
| Manufacturer | MCC (Micro Commercial Components) |
| Configuration | Three Phase Inverter with Brake |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | P2S |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 15A |
| Current - Collector (Ic) (Max) | 15 A |
| Input Capacitance (Cies) @ Vce | 980 pF @ 25 V |
| Current - Collector Cutoff (Max) | 1 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
