Step1: Product

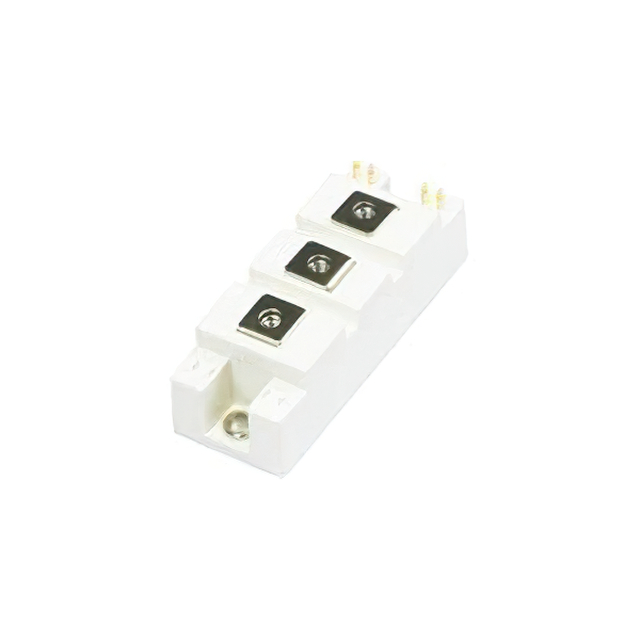

MCC (Micro Commercial Components) MIF100R12C1PF-BP
Image shown is a representation only
Manufacturer
Manufacturer No
MIF100R12C1PF-BP
Package
Module
Packaging
Bulk
Description
IGBT MOD 1200V 100A 675MW MOD
Detailed Description
IGBT Module NPT 2 Independent 1200 V 100 A 675 mW Chassis Mount Module
DataSheet
IGBT Type
NPT
Packaging
Bulk
Part Status
Active
Power - Max
675 mW
Manufacturer
MCC (Micro Commercial Components)
Configuration
2 Independent
Mounting Type
Chassis Mount
NTC Thermistor
No
Package / Case
Module
Base Product Number
MIF100
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
Module
Vce(on) (Max) @ Vge, Ic
3V @ 15V, 100A
Current - Collector (Ic) (Max)
100 A
Input Capacitance (Cies) @ Vce
6700 pF @ 25 V
Current - Collector Cutoff (Max)
1 mA
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| IGBT Type | NPT |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 675 mW |
| Manufacturer | MCC (Micro Commercial Components) |
| Configuration | 2 Independent |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Module |
| Base Product Number | MIF100 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | Module |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 100A |
| Current - Collector (Ic) (Max) | 100 A |
| Input Capacitance (Cies) @ Vce | 6700 pF @ 25 V |
| Current - Collector Cutoff (Max) | 1 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
