MCC (Micro Commercial Components) MIP50R12E2ATN-BP

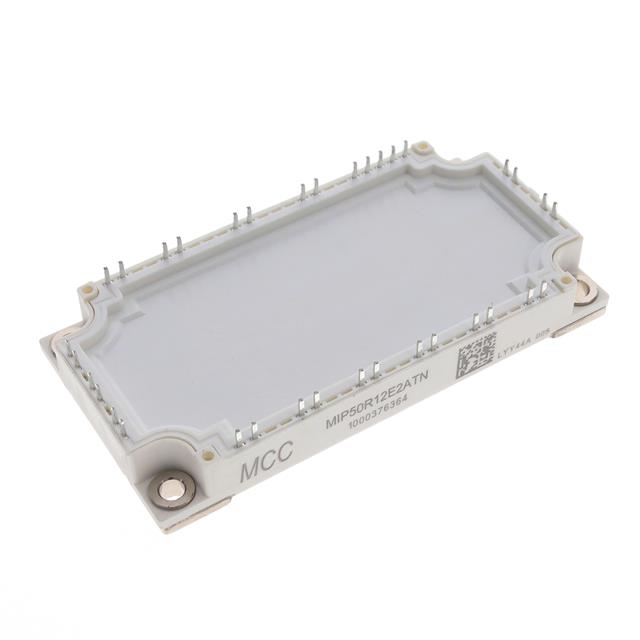

Image shown is a representation only
Manufacturer
Manufacturer No
MIP50R12E2ATN-BP
Package
Module
Packaging
Bulk
Description
IGBT MODULE 1200V 50A 288W E2A
Detailed Description
IGBT Module Three Phase Inverter 1200 V 50 A 288 W Chassis Mount E2A
DataSheet
Input
Three Phase Bridge Rectifier
Packaging
Bulk
Part Status
Active
Power - Max
288 W
Manufacturer
MCC (Micro Commercial Components)
Configuration
Three Phase Inverter
Mounting Type
Chassis Mount
NTC Thermistor
Yes
Package / Case
Module
Base Product Number
MIP50
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
E2A
Vce(on) (Max) @ Vge, Ic
2.3V @ 15V, 50A
Current - Collector (Ic) (Max)
50 A
Input Capacitance (Cies) @ Vce
2.6 nF @ 25 V
Current - Collector Cutoff (Max)
1 mA
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Input | Three Phase Bridge Rectifier |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 288 W |
| Manufacturer | MCC (Micro Commercial Components) |
| Configuration | Three Phase Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Base Product Number | MIP50 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | E2A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 50A |
| Current - Collector (Ic) (Max) | 50 A |
| Input Capacitance (Cies) @ Vce | 2.6 nF @ 25 V |
| Current - Collector Cutoff (Max) | 1 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
