Maanshan New Conda Magnetic Industrial Co.,Ltd. PM114/92.5-LP9

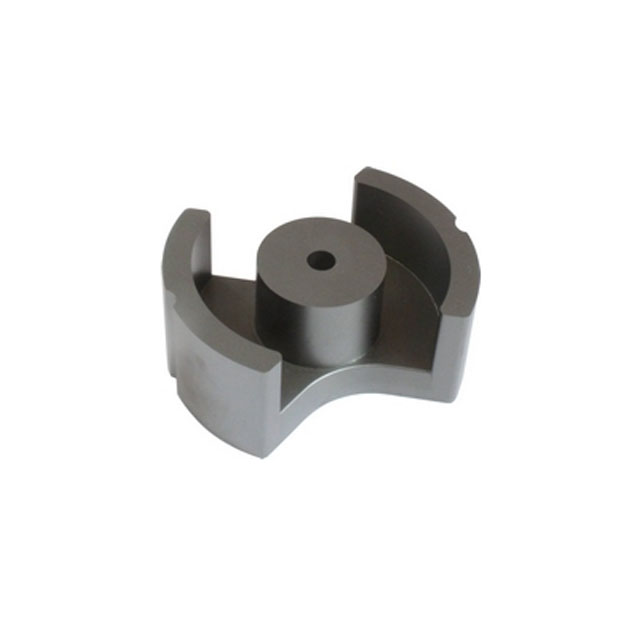

Image shown is a representation only
Manufacturer
Manufacturer No
PM114/92.5-LP9
Packaging
Box
Description
FERRITE CORE PM LP9 2PC SET
Detailed Description
Uncoated LP9 Ferrite Core PM Type Length Width 4.488" (114.00mm) Diameter 1.821" (46.25mm) Height
DataSheet
Gap
Ungapped
Finish
Uncoated
Height
1.821" (46.25mm)
Series
PM114/92.5
Diameter
4.488" (114.00mm)
Material
LP9
Core Type
PM
Packaging
Box
Tolerance
±25%
Part Status
Active
Manufacturer
Maanshan New Conda Magnetic Industrial Co.,Ltd.
Inductance Factor (Al)
21 µH
Supplier Device Package
PM 114 x 92.5
Effective Area (Ae) mm²
1720.0
Effective Length (le) mm
200.0
Initial Permeability (µi)
3300
Core Factor (ΣI/A) mm⁻¹
0.12
Effective Permeability (µe)
1944.0
Effective Magnetic Volume (Ve) mm³
344000.0
Minimum Core Cross Section (Amin) mm²
1380.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Finish | Uncoated |
| Height | 1.821" (46.25mm) |
| Series | PM114/92.5 |
| Diameter | 4.488" (114.00mm) |
| Material | LP9 |
| Core Type | PM |
| Packaging | Box |
| Tolerance | ±25% |
| Part Status | Active |
| Manufacturer | Maanshan New Conda Magnetic Industrial Co.,Ltd. |
| Inductance Factor (Al) | 21 µH |
| Supplier Device Package | PM 114 x 92.5 |
| Effective Area (Ae) mm² | 1720.0 |
| Effective Length (le) mm | 200.0 |
| Initial Permeability (µi) | 3300 |
| Core Factor (ΣI/A) mm⁻¹ | 0.12 |
| Effective Permeability (µe) | 1944.0 |
| Effective Magnetic Volume (Ve) mm³ | 344000.0 |
| Minimum Core Cross Section (Amin) mm² | 1380.0 |
