Maanshan New Conda Magnetic Industrial Co.,Ltd. EE100/45/28-LP3
Image shown is a representation only
Manufacturer
Manufacturer No
EE100/45/28-LP3
Packaging
Box
Description

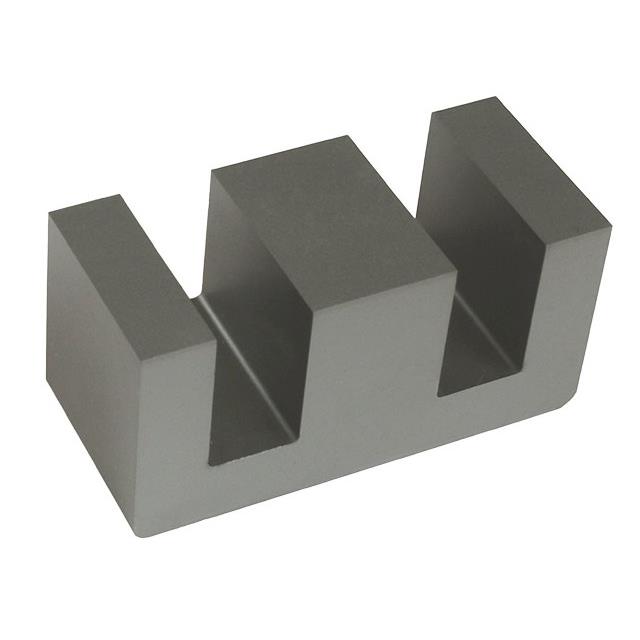

FERRITE CORE E LP3 1PC
Detailed Description
Uncoated LP3 Ferrite Core E Type 3.937" (100.00mm) Length 1.102" (28.00mm) Width Diameter 1.772" (45.00mm) Height
DataSheet
Gap
Ungapped
Width
1.102" (28.00mm)
Finish
Uncoated
Height
1.772" (45.00mm)
Length
3.937" (100.00mm)
Series
E100/45/28
Material
LP3
Core Type
E
Packaging
Box
Tolerance
±25%
Part Status
Active
Manufacturer
Maanshan New Conda Magnetic Industrial Co.,Ltd.
Inductance Factor (Al)
8 µH
Supplier Device Package
E 100 x 45 x 28
Effective Area (Ae) mm²
760.0
Effective Length (le) mm
212.0
Initial Permeability (µi)
2300
Core Factor (ΣI/A) mm⁻¹
0.28
Effective Permeability (µe)
1777.0
Effective Magnetic Volume (Ve) mm³
161100.0
Minimum Core Cross Section (Amin) mm²
690.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | 1.102" (28.00mm) |
| Finish | Uncoated |
| Height | 1.772" (45.00mm) |
| Length | 3.937" (100.00mm) |
| Series | E100/45/28 |
| Material | LP3 |
| Core Type | E |
| Packaging | Box |
| Tolerance | ±25% |
| Part Status | Active |
| Manufacturer | Maanshan New Conda Magnetic Industrial Co.,Ltd. |
| Inductance Factor (Al) | 8 µH |
| Supplier Device Package | E 100 x 45 x 28 |
| Effective Area (Ae) mm² | 760.0 |
| Effective Length (le) mm | 212.0 |
| Initial Permeability (µi) | 2300 |
| Core Factor (ΣI/A) mm⁻¹ | 0.28 |
| Effective Permeability (µe) | 1777.0 |
| Effective Magnetic Volume (Ve) mm³ | 161100.0 |
| Minimum Core Cross Section (Amin) mm² | 690.0 |
