Maanshan New Conda Magnetic Industrial Co.,Ltd. H78/50.5/25-HP3

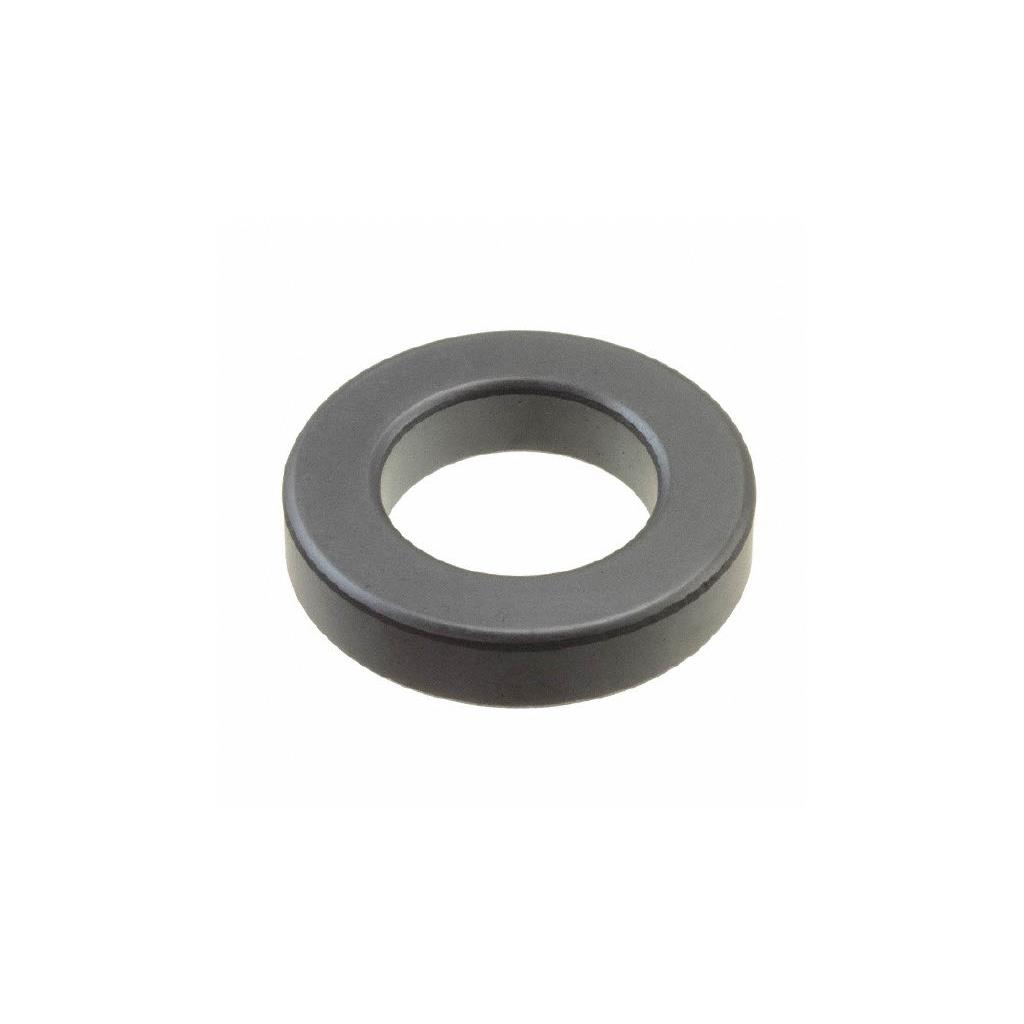

Image shown is a representation only
Manufacturer
Manufacturer No
H78/50.5/25-HP3
Packaging
Box
Description
FERRITE CORE TOROID 15.2H HP3
Detailed Description
Uncoated HP3 Ferrite Core Toroid Type Length Width 3.071" (78.00mm) Diameter 0.984" (25.00mm) Height
DataSheet
Gap
Ungapped
Finish
Uncoated
Height
0.984" (25.00mm)
Series
H78/50.5/25
Diameter
3.071" (78.00mm)
Material
HP3
Core Type
Toroid
Packaging
Box
Tolerance
±30%
Part Status
Active
Manufacturer
Maanshan New Conda Magnetic Industrial Co.,Ltd.
Inductance Factor (Al)
15.2 µH
Supplier Device Package
H78 x 50.5 x 25
Effective Area (Ae) mm²
338.1
Effective Length (le) mm
195.6
Initial Permeability (µi)
10000
Core Factor (ΣI/A) mm⁻¹
0.58
Effective Magnetic Volume (Ve) mm³
66079.0
Minimum Core Cross Section (Amin) mm²
338.1
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Finish | Uncoated |
| Height | 0.984" (25.00mm) |
| Series | H78/50.5/25 |
| Diameter | 3.071" (78.00mm) |
| Material | HP3 |
| Core Type | Toroid |
| Packaging | Box |
| Tolerance | ±30% |
| Part Status | Active |
| Manufacturer | Maanshan New Conda Magnetic Industrial Co.,Ltd. |
| Inductance Factor (Al) | 15.2 µH |
| Supplier Device Package | H78 x 50.5 x 25 |
| Effective Area (Ae) mm² | 338.1 |
| Effective Length (le) mm | 195.6 |
| Initial Permeability (µi) | 10000 |
| Core Factor (ΣI/A) mm⁻¹ | 0.58 |
| Effective Magnetic Volume (Ve) mm³ | 66079.0 |
| Minimum Core Cross Section (Amin) mm² | 338.1 |
