Step1: Product

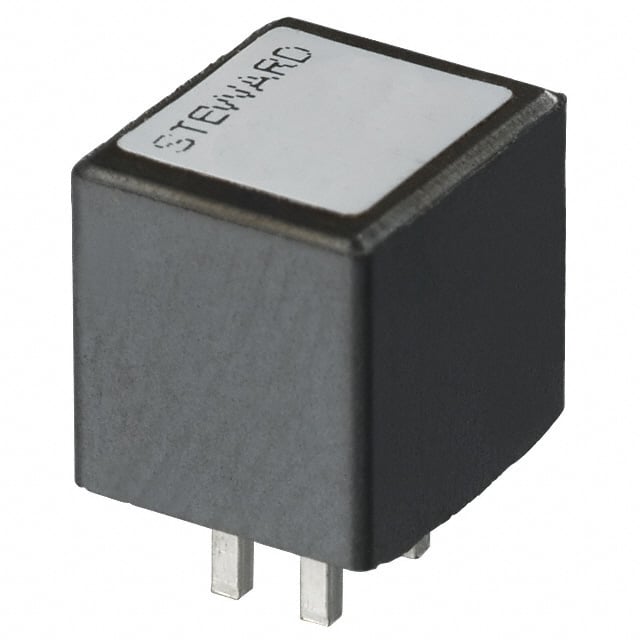

Laird-Signal Integrity Products CM3440Z171B-00
Image shown is a representation only
Manufacturer
Manufacturer No
CM3440Z171B-00
Package
Vertical, 4 PC Pin
Packaging
Bulk
Description
CMC 20A 2LN 170 OHM TH
Detailed Description
2 Line Common Mode Choke Through Hole 170 Ohms @ 100 MHz 20A DCR 1mOhm
DataSheet
Series
CM
Packaging
Bulk
Filter Type
Power Line
Part Status
Obsolete
Height (Max)
0.367" (9.32mm)
Manufacturer
Laird-Signal Integrity Products
Mounting Type
Through Hole
Package / Case
Vertical, 4 PC Pin
Number of Lines
2
Size / Dimension
0.395" L x 0.335" W (10.03mm x 8.51mm)
Current Rating (Max)
20A
Impedance @ Frequency
170 Ohms @ 100 MHz
Operating Temperature
-55°C ~ 125°C
DC Resistance (DCR) (Max)
1mOhm
| Attribute | Value |
|---|---|
| Series | CM |
| Packaging | Bulk |
| Filter Type | Power Line |
| Part Status | Obsolete |
| Height (Max) | 0.367" (9.32mm) |
| Manufacturer | Laird-Signal Integrity Products |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Number of Lines | 2 |
| Size / Dimension | 0.395" L x 0.335" W (10.03mm x 8.51mm) |
| Current Rating (Max) | 20A |
| Impedance @ Frequency | 170 Ohms @ 100 MHz |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) (Max) | 1mOhm |
