Step1: Product

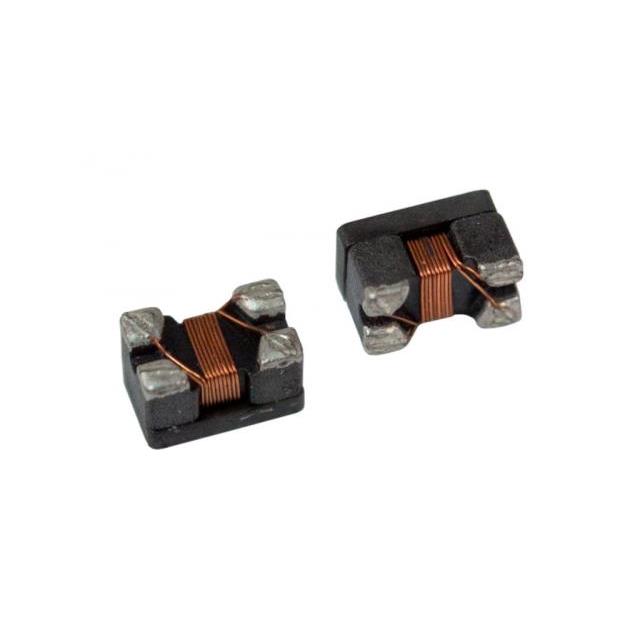

Laird-Signal Integrity Products CM1812B223R-1A
Image shown is a representation only
Manufacturer
Manufacturer No
CM1812B223R-1A
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CMC 22UH 310MA 2LN 1.2KOHM SMD
Detailed Description
22 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1.2 kOhms @ 10 MHz 310mA DCR 1Ohm
Datasheet
Series
CM
Ratings
AEC-Q200
Packaging
Tape & Reel (TR); Cut Tape (CT)
Filter Type
Signal Line
Height (Max)
0.098" (2.50mm)
Manufacturer
Laird-Signal Integrity Products
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Voltage Rating - DC
50V
Current Rating (Max)
310mA
Impedance @ Frequency
1.2 kOhms @ 10 MHz
Operating Temperature
-55°C ~ 150°C
Inductance @ Frequency
22 µH @ 100 kHz
DC Resistance (DCR) (Max)
1Ohm
| Attribute | Value |
|---|---|
| Series | CM |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Filter Type | Signal Line |
| Height (Max) | 0.098" (2.50mm) |
| Manufacturer | Laird-Signal Integrity Products |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 310mA |
| Impedance @ Frequency | 1.2 kOhms @ 10 MHz |
| Operating Temperature | -55°C ~ 150°C |
| Inductance @ Frequency | 22 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 1Ohm |
