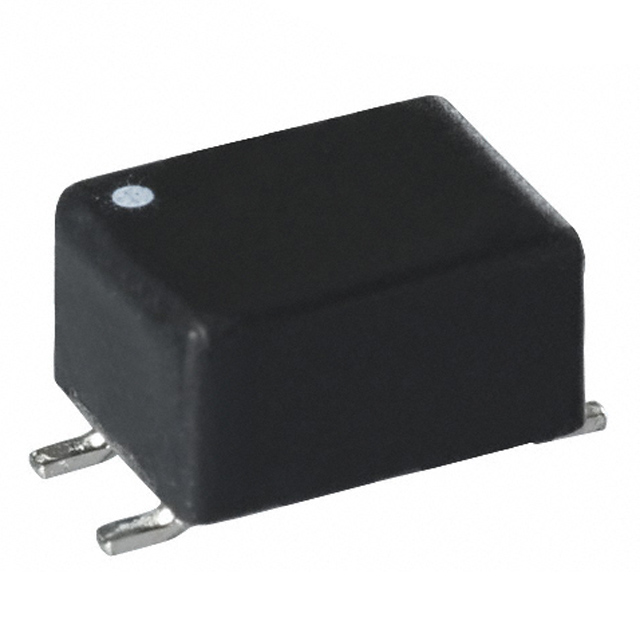

Laird-Signal Integrity Products CC2824B475R-10
Image shown is a representation only
Manufacturer
Manufacturer No
CC2824B475R-10
Quantity
5
Availability
In Stock
Package
Horizontal, 4 Flat Lead
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CMC 4.7MH 400MA 2LN 12.3KOHM SMD
Detailed Description
4.7 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 12.3 kOhms @ 2 MHz 400mA DCR 0.55Ohm (Typ)
DataSheet
Series
CC2824
Packaging
Tape & Reel (TR); Cut Tape (CT)
Filter Type
Signal Line
Part Status
Active
Height (Max)
0.150" (3.80mm)
Manufacturer
Laird-Signal Integrity Products
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 Flat Lead
Number of Lines
2
Size / Dimension
0.295" L x 0.217" W (7.50mm x 5.50mm)
Voltage Rating - AC
42V
Voltage Rating - DC
80V
Current Rating (Max)
400mA
Impedance @ Frequency
12.3 kOhms @ 2 MHz
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
4.7 mH @ 10 kHz
DC Resistance (DCR) (Max)
0.55Ohm (Typ)
| Attribute | Value |
|---|---|
| Series | CC2824 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Filter Type | Signal Line |
| Part Status | Active |
| Height (Max) | 0.150" (3.80mm) |
| Manufacturer | Laird-Signal Integrity Products |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 Flat Lead |
| Number of Lines | 2 |
| Size / Dimension | 0.295" L x 0.217" W (7.50mm x 5.50mm) |
| Voltage Rating - AC | 42V |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 400mA |
| Impedance @ Frequency | 12.3 kOhms @ 2 MHz |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 4.7 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 0.55Ohm (Typ) |
