Laird-Signal Integrity Products CM1812B113R-1A

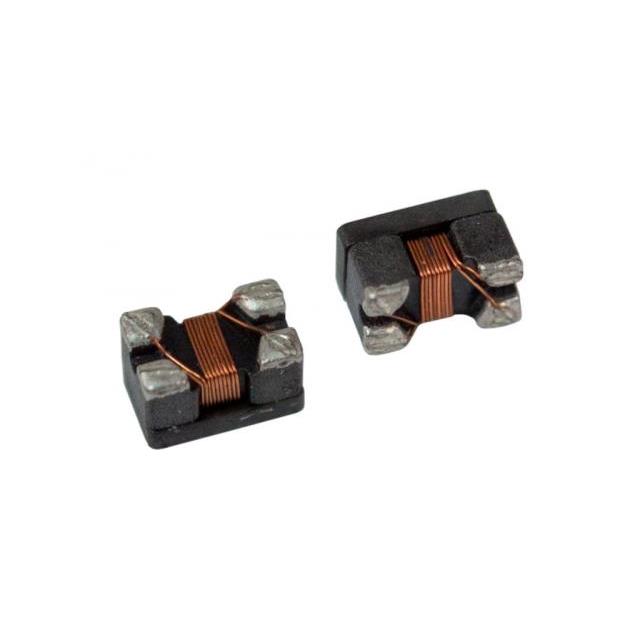

Image shown is a representation only
Manufacturer
Manufacturer No
CM1812B113R-1A
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 11UH 360MA 2LN 600OHM SMD
Detailed Description
11 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 600 Ohms @ 10 MHz 360mA DCR 600mOhm
DataSheet
Series
CM
Ratings
AEC-Q200
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Signal Line
Part Status
Active
Height (Max)
0.110" (2.80mm)
Manufacturer
Laird-Signal Integrity Products
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.00mm)
Voltage Rating - DC
50V
Current Rating (Max)
360mA
Impedance @ Frequency
600 Ohms @ 10 MHz
Operating Temperature
-55°C ~ 150°C
Inductance @ Frequency
11 µH @ 100 kHz
DC Resistance (DCR) (Max)
600mOhm
| Attribute | Value |
|---|---|
| Series | CM |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Signal Line |
| Part Status | Active |
| Height (Max) | 0.110" (2.80mm) |
| Manufacturer | Laird-Signal Integrity Products |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.00mm) |
| Voltage Rating - DC | 50V |
| Current Rating (Max) | 360mA |
| Impedance @ Frequency | 600 Ohms @ 10 MHz |
| Operating Temperature | -55°C ~ 150°C |
| Inductance @ Frequency | 11 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 600mOhm |
