Step1: Product

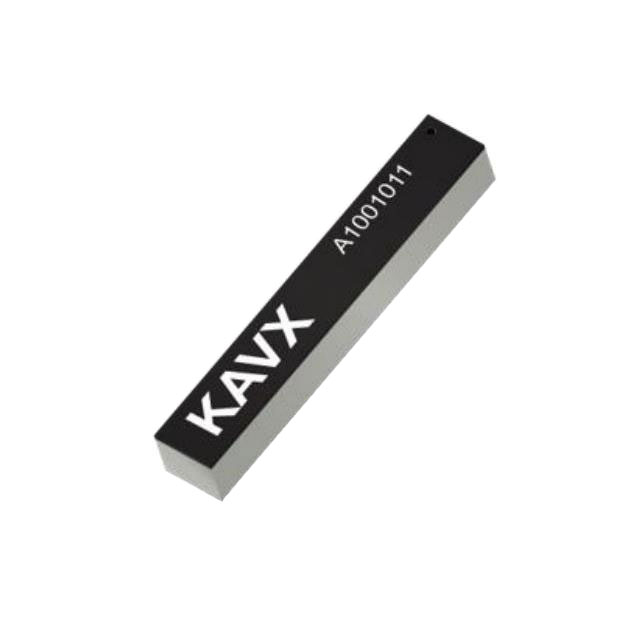

KYOCERA AVX A1001011
Image shown is a representation only
Manufacturer
Manufacturer No
A1001011
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
AUTOMOTIVE GPS/GNSS ( ON/OFF GRO
Detailed Description
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Chip Solder Surface Mount
DataSheet
Gain
1dBi, 0.96dBi, 0.87dBi, 0.96dBi, 1dBi
VSWR
1.5, 2.5
Series
A
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Antenna Type
Chip
Applications
Beidou, Galileo, GLONASS, GNSS, GPS
Height (Max)
0.130" (3.30mm)
Manufacturer
KYOCERA AVX
Mounting Type
Surface Mount
Frequency Group
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency Range
868MHz ~ 928MHz, 1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz
Number of Bands
5
RF Family/Standard
General ISM, Navigation
Frequency (Center/Band)
898MHz, 1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz
| Attribute | Value |
|---|---|
| Gain | 1dBi, 0.96dBi, 0.87dBi, 0.96dBi, 1dBi |
| VSWR | 1.5, 2.5 |
| Series | A |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 0.130" (3.30mm) |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency Range | 868MHz ~ 928MHz, 1.559GHz ~ 1.563GHz, 1.559GHz ~ 1.591GHz, 1.593GHz ~ 1.61GHz |
| Number of Bands | 5 |
| RF Family/Standard | General ISM, Navigation |
| Frequency (Center/Band) | 898MHz, 1.561GHz, 1.575GHz, 1.575GHz, 1.603GHz |
