Step1: Product

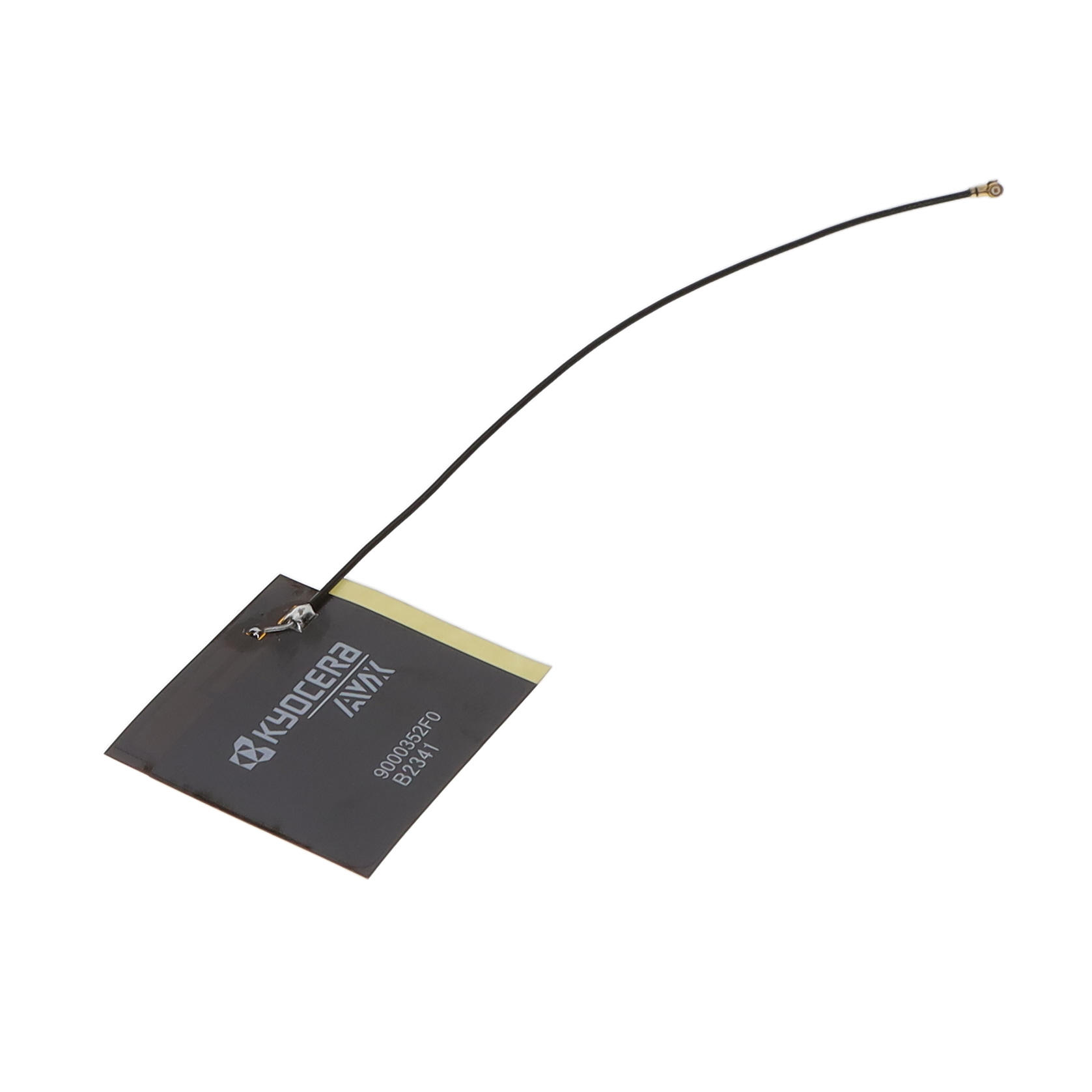

KYOCERA AVX 9000352F0-AE20L0100
Image shown is a representation only
Manufacturer
Manufacturer No
9000352F0-AE20L0100
Packaging
Bag
Description
WI-FI 6E/BLUETOOTH FPC ANTENNA F
Detailed Description
RF ANTENNA WLAN, Zigbee™ Flat Patch MHF3, W.FL Adhesive
Datasheet
Gain
3.2dBi, 3dBi, 2.6dBi
VSWR
3
Features
Cable - 100mm
Packaging
Bag
Power - Max
2 W
Termination
MHF3, W.FL
Antenna Type
Flat Patch
Applications
WLAN, Zigbee™
Height (Max)
0.063" (1.60mm)
Manufacturer
KYOCERA AVX
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Number of Bands
3
RF Family/Standard
802.15.4, Bluetooth, WiFi
Frequency (Center/Band)
2.44GHz, 5.5GHz, 6.525GHz
| Attribute | Value |
|---|---|
| Gain | 3.2dBi, 3dBi, 2.6dBi |
| VSWR | 3 |
| Features | Cable - 100mm |
| Packaging | Bag |
| Power - Max | 2 W |
| Termination | MHF3, W.FL |
| Antenna Type | Flat Patch |
| Applications | WLAN, Zigbee™ |
| Height (Max) | 0.063" (1.60mm) |
| Manufacturer | KYOCERA AVX |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Number of Bands | 3 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Frequency (Center/Band) | 2.44GHz, 5.5GHz, 6.525GHz |
