KYOCERA AVX 209257016001013

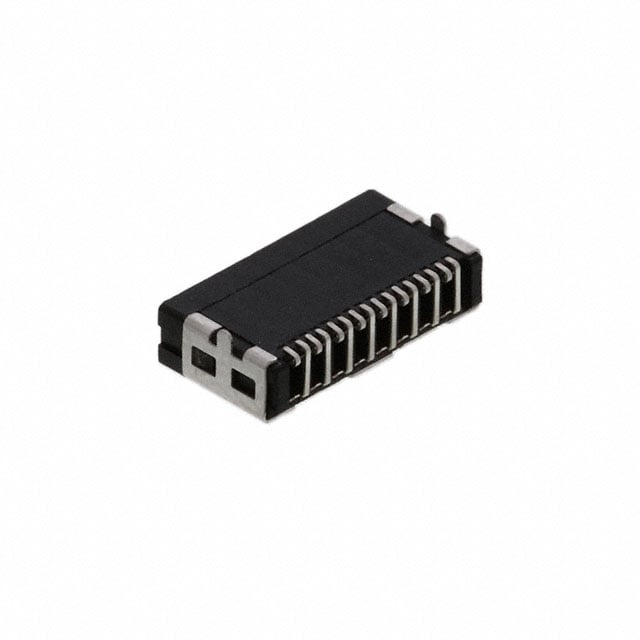

Image shown is a representation only
Manufacturer
Manufacturer No
209257016001013
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT 16P 0.049 GOLD SMD R/A
Detailed Description
16 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold
DataSheet
Mfr
KYOCERA AVX
Style
Board to Cable/Wire
Series
9257
Features
Board Guide, Shielded, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Applications
General Purpose, Industrial, Medical, Telecommunications
Contact Type
Female Blade Socket
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Friction Lock
Number of Rows
2
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
125VAC
Contact Material
Beryllium Copper
Insulation Height
0.118" (3.00mm)
Base Product Number
209257
Insulation Material
Polyamide (PA), Nylon
Number of Positions
16
Contact Finish - Post
Tin
Current Rating (Amps)
1A per Contact
Operating Temperature
-55°C ~ 85°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
31.5µin (0.80µm)
| Attribute | Value |
|---|---|
| Mfr | KYOCERA AVX |
| Style | Board to Cable/Wire |
| Series | 9257 |
| Features | Board Guide, Shielded, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
| Contact Type | Female Blade Socket |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Friction Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 125VAC |
| Contact Material | Beryllium Copper |
| Insulation Height | 0.118" (3.00mm) |
| Base Product Number | 209257 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 16 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
