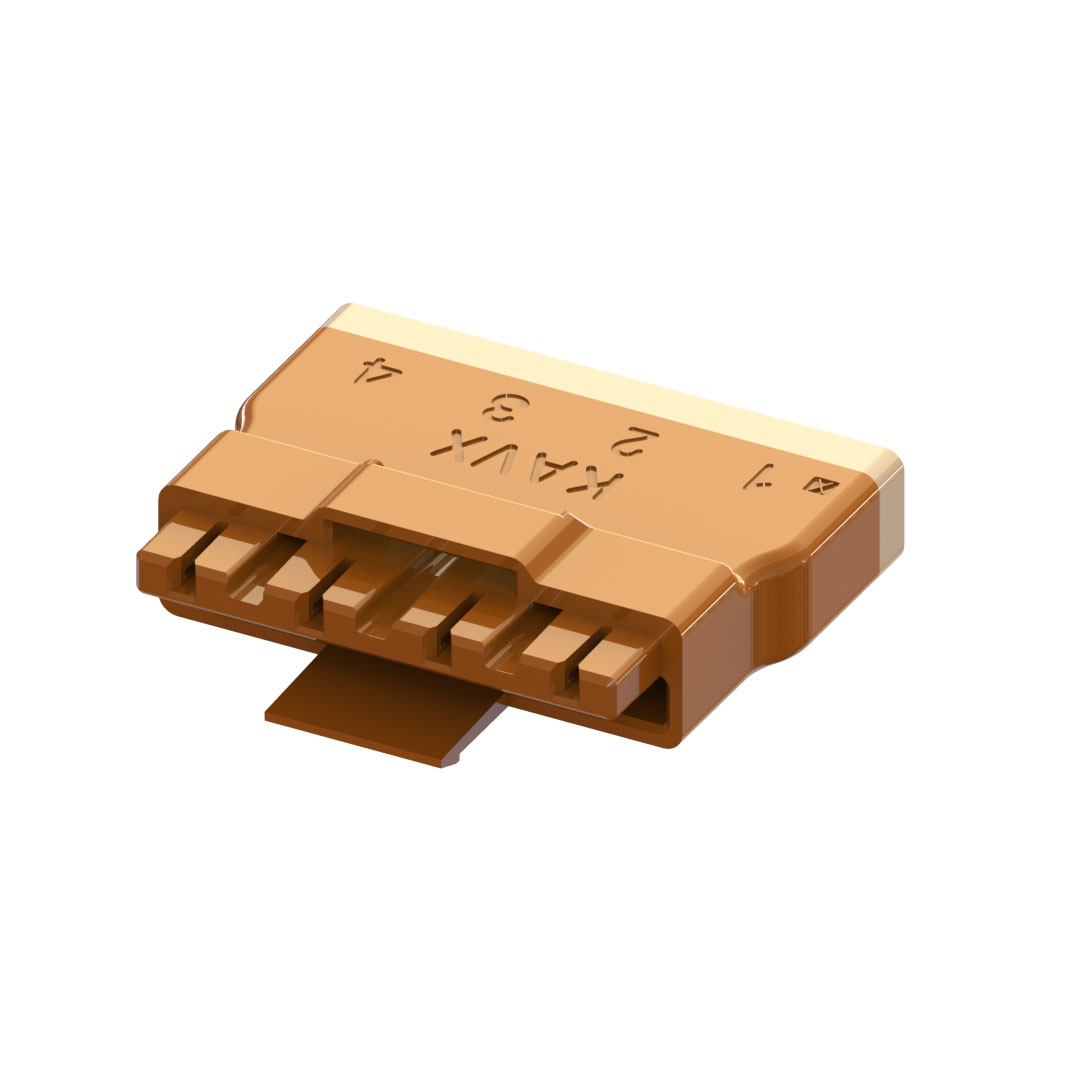

KYOCERA AVX 009288004001706
Image shown is a representation only
Manufacturer
Manufacturer No
009288004001706
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
4 POSITION WIRE TO BOARD RECEPTA
Detailed Description
4 Position Receptacle Connector 0.197" (5.00mm) Surface Mount, Right Angle Tin
DataSheet
Mfr
KYOCERA AVX
Style
Board to Cable/Wire
Series
9288
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Female Socket
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.197" (5.00mm)
Voltage Rating
600VAC/DC
Contact Material
Phosphor Bronze
Insulation Color
Orange
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
4
Contact Finish - Post
Tin
Current Rating (Amps)
7A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | KYOCERA AVX |
| Style | Board to Cable/Wire |
| Series | 9288 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Female Socket |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.197" (5.00mm) |
| Voltage Rating | 600VAC/DC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Orange |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 7A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
