Step1: Product

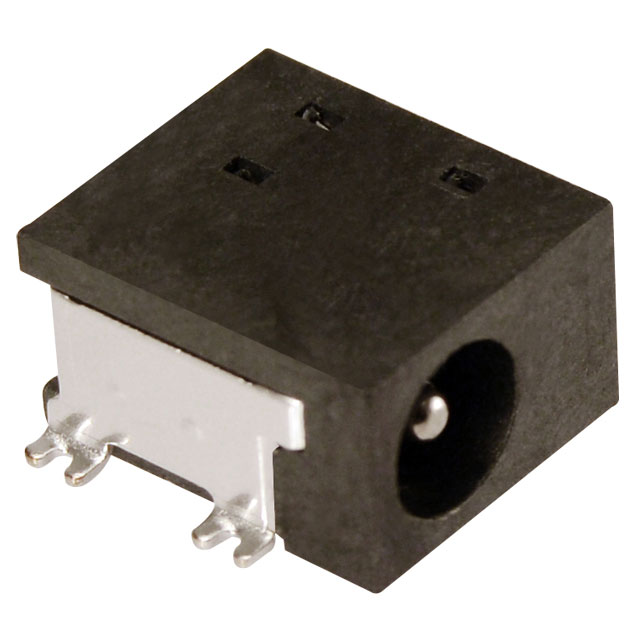

Kycon, Inc. KLDX-SMT-0201L-BTR
Image shown is a representation only
Manufacturer
Manufacturer No
KLDX-SMT-0201L-BTR
Date Code
12+
Quantity
8,041
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN PWR JACK MINI 1.3MM SMT
Detailed Description
Power Barrel Connector Jack 1.30mm ID (0.051"), 3.50mm OD (0.138") Surface Mount, Right Angle
Datasheet
Gender
Male
Series
KLDVX-SMT
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Body Color
Black
Termination
Solder
Manufacturer
Kycon, Inc.
Mounting Type
Surface Mount, Right Angle
Connector Type
Jack
Actual Diameter
0.051" (1.30mm ID), 0.154" (3.90mm OD)
Voltage - Rated
24VDC
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
KLDX-SMT
Current Rating (Amps)
3 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
1.30mm ID (0.051"), 3.50mm OD (0.138")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | KLDVX-SMT |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Manufacturer | Kycon, Inc. |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.051" (1.30mm ID), 0.154" (3.90mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | KLDX-SMT |
| Current Rating (Amps) | 3 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 1.30mm ID (0.051"), 3.50mm OD (0.138") |
