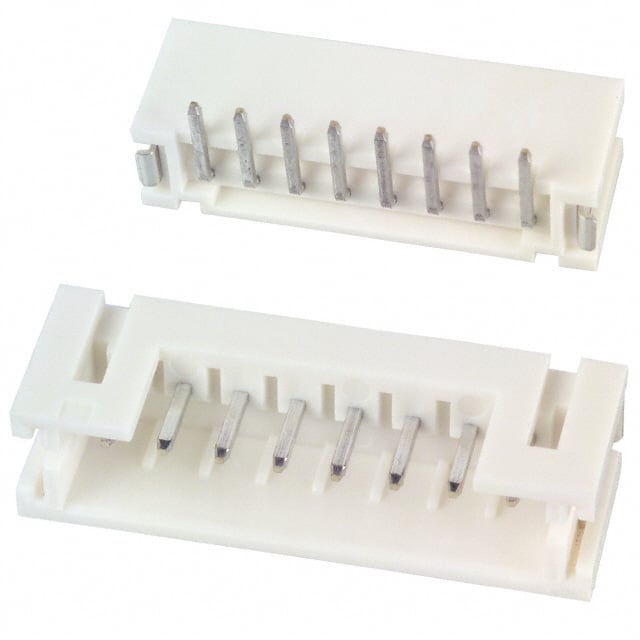

JST Sales America Inc. B8B-PH-SM3-TB
Image shown is a representation only
Manufacturer
Manufacturer No
B8B-PH-SM3-TB
Packaging
Tape & Reel (TR)
Description
CONN HEADER SMD 8POS 2MM
Detailed Description
Connector Header Surface Mount 8 position 0.079" (2.00mm)
DataSheet
Mfr
JST Sales America Inc.
Style
Board to Cable/Wire
Series
PH
Features
Solder Retention
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Obsolete
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
100V
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.260" (6.60mm)
Insulation Material
Polyamide (PA46), Nylon 4/6
Number of Positions
8
Contact Finish - Post
Tin-Lead
Current Rating (Amps)
2A
Operating Temperature
-25°C ~ 85°C
Mated Stacking Heights
8.6mm
Contact Finish - Mating
Tin-Lead
Contact Length - Mating
0.130" (3.30mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JST Sales America Inc. |
| Style | Board to Cable/Wire |
| Series | PH |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Obsolete |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 100V |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.260" (6.60mm) |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Number of Positions | 8 |
| Contact Finish - Post | Tin-Lead |
| Current Rating (Amps) | 2A |
| Operating Temperature | -25°C ~ 85°C |
| Mated Stacking Heights | 8.6mm |
| Contact Finish - Mating | Tin-Lead |
| Contact Length - Mating | 0.130" (3.30mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
