JST Sales America Inc. SM10B-GHS-TB

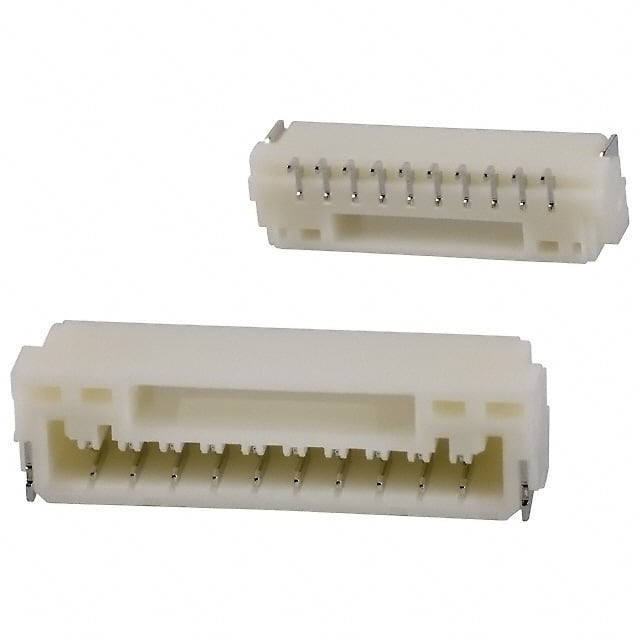

Image shown is a representation only
Manufacturer
Manufacturer No
SM10B-GHS-TB
Quantity
7497
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD R/A 10POS 1.25MM
Detailed Description
Connector Header Surface Mount, Right Angle 10 position 0.049" (1.25mm)
DataSheet
Mfr
JST Sales America Inc.
Style
Board to Cable/Wire
Series
GH
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Outer Shroud Contact
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
50V
Contact Material
Phosphor Bronze
Insulation Color
Natural
Insulation Height
0.167" (4.25mm)
Base Product Number
SM10B-GH
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
10
Contact Finish - Post
Tin
Current Rating (Amps)
1A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JST Sales America Inc. |
| Style | Board to Cable/Wire |
| Series | GH |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Outer Shroud Contact |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 50V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Insulation Height | 0.167" (4.25mm) |
| Base Product Number | SM10B-GH |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 10 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
