Step1: Product

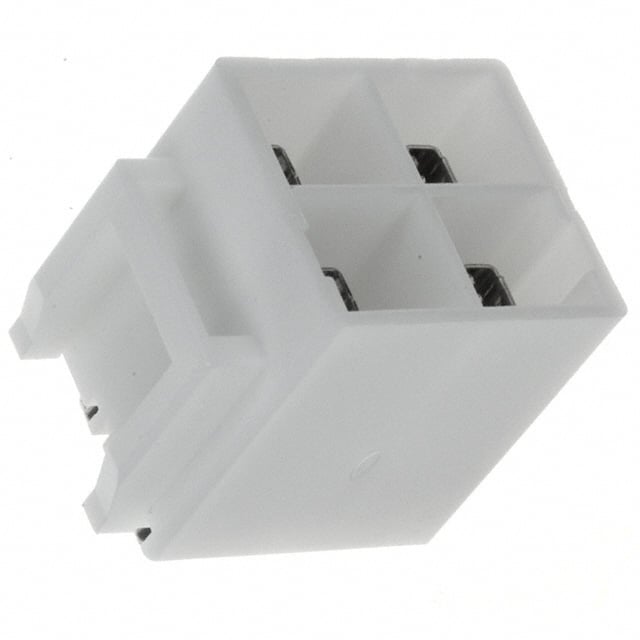

JST Sales America Inc. B04P-VL
Image shown is a representation only
Manufacturer
Manufacturer No
B04P-VL
Quantity
2403
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 4POS 6.2MM
Detailed Description
Connector Header Through Hole 4 position 0.244" (6.20mm)
DataSheet
Mfr
JST Sales America Inc.
Style
Board to Cable/Wire
Series
VL
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.244" (6.20mm)
Voltage Rating
600V
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.646" (16.40mm)
Base Product Number
B04P
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
4
Row Spacing - Mating
0.326" (8.28mm)
Contact Finish - Post
Tin
Contact Length - Post
0.142" (3.60mm)
Current Rating (Amps)
20A
Operating Temperature
-25°C ~ 90°C
Mated Stacking Heights
29.2mm
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JST Sales America Inc. |
| Style | Board to Cable/Wire |
| Series | VL |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.244" (6.20mm) |
| Voltage Rating | 600V |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.646" (16.40mm) |
| Base Product Number | B04P |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 4 |
| Row Spacing - Mating | 0.326" (8.28mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.142" (3.60mm) |
| Current Rating (Amps) | 20A |
| Operating Temperature | -25°C ~ 90°C |
| Mated Stacking Heights | 29.2mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
