Step1: Product

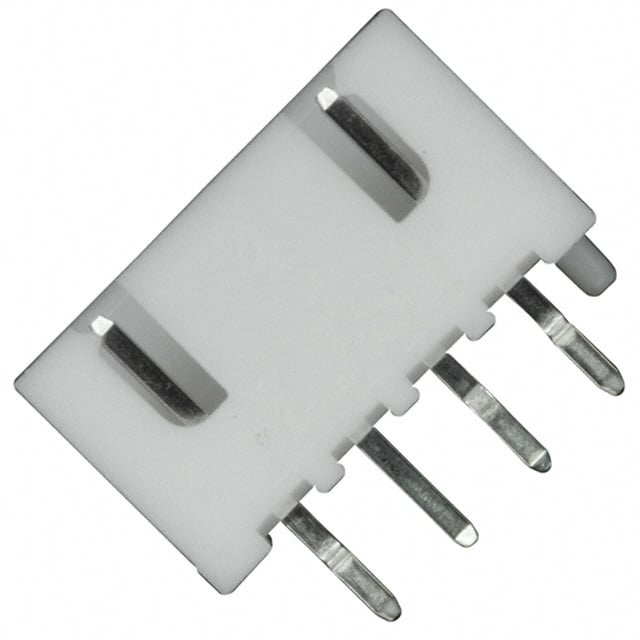

JST Sales America Inc. B4B-XH-AM
Image shown is a representation only
Manufacturer
Manufacturer No
B4B-XH-AM
Packaging
Bulk
Description
CONN HEADER VERT 4POS 2.5MM
Detailed Description
Connector Header Through Hole 4 position 0.098" (2.50mm)
DataSheet
Mfr
JST Sales America Inc.
Style
Board to Cable/Wire
Series
XH
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Press-Fit, Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.276" (7.00mm)
Base Product Number
B4B-XH-A
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
4
Contact Finish - Post
Tin
Contact Length - Post
0.134" (3.40mm)
Current Rating (Amps)
3A
Operating Temperature
-25°C ~ 85°C
Mated Stacking Heights
9.8mm
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JST Sales America Inc. |
| Style | Board to Cable/Wire |
| Series | XH |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Press-Fit, Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.276" (7.00mm) |
| Base Product Number | B4B-XH-A |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134" (3.40mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -25°C ~ 85°C |
| Mated Stacking Heights | 9.8mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
