Step1: Product

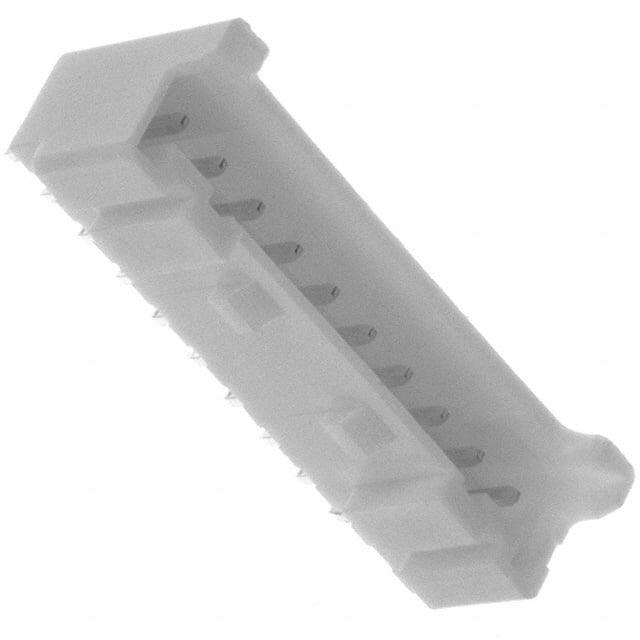

JST Sales America Inc. B10B-PASK-1
Image shown is a representation only
Manufacturer
Manufacturer No
B10B-PASK-1
Quantity
50
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 10POS 2MM
Detailed Description
Connector Header Through Hole 10 position 0.079" (2.00mm)
DataSheet
Mfr
JST Sales America Inc.
Style
Board to Cable/Wire
Series
PA
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.303" (7.70mm)
Base Product Number
B10B-PAS
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
10
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
3A
Operating Temperature
-25°C ~ 85°C
Mated Stacking Heights
9.9mm, 14.7mm, 14.9mm
Overall Contact Length
0.319" (8.10mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.126" (3.20mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JST Sales America Inc. |
| Style | Board to Cable/Wire |
| Series | PA |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.303" (7.70mm) |
| Base Product Number | B10B-PAS |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 10 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -25°C ~ 85°C |
| Mated Stacking Heights | 9.9mm, 14.7mm, 14.9mm |
| Overall Contact Length | 0.319" (8.10mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.126" (3.20mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
