JAE Electronics MX84B040NF1

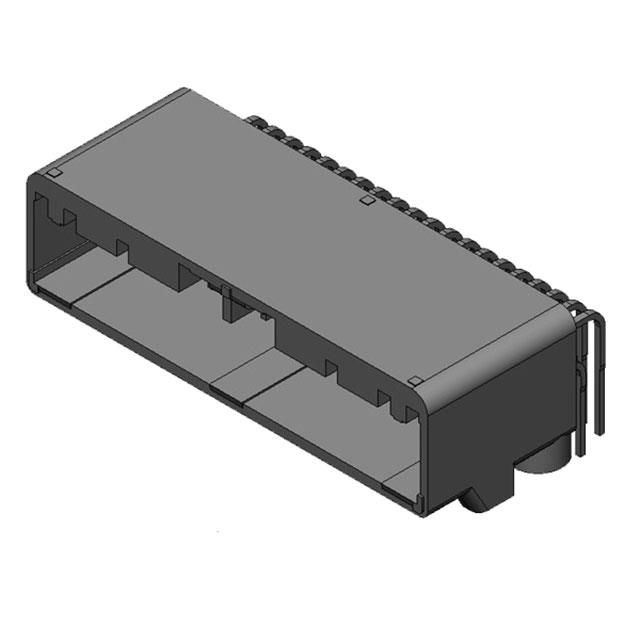

Image shown is a representation only
Manufacturer
Manufacturer No
MX84B040NF1
Quantity
429
Availability
In Stock
Packaging
Tube
Description
CONN PIN HEADER 40 POS R/A
Detailed Description
Connector Header Through Hole, Right Angle 40 position 0.087" (2.20mm)
DataSheet
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
MX84B
Features
Mounting Flange
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.087" (2.20mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.626" (15.90mm)
Base Product Number
MX84B
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
Number of Positions
40
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.303" (7.70mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Cable/Wire |
| Series | MX84B |
| Features | Mounting Flange |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.087" (2.20mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.626" (15.90mm) |
| Base Product Number | MX84B |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Number of Positions | 40 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.303" (7.70mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
