Step1: Product

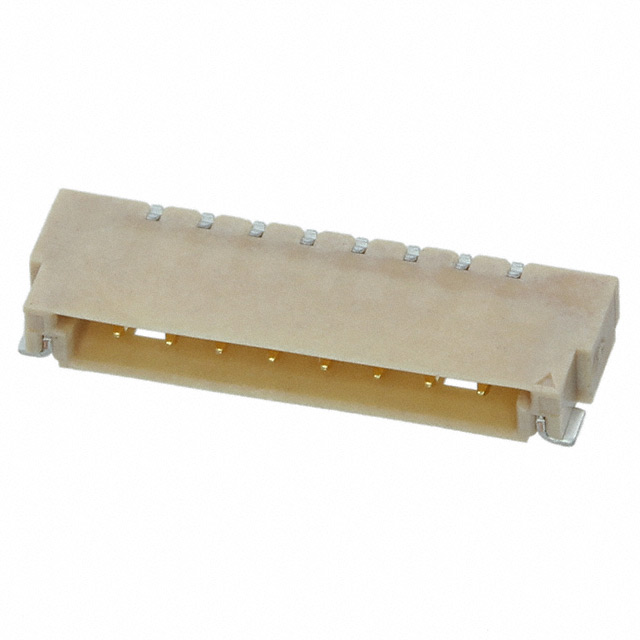

JAE Electronics FI-S8P-HFE-E1500
Image shown is a representation only
Manufacturer
Manufacturer No
FI-S8P-HFE-E1500
Quantity
1013
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD R/A 8POS 1.25MM
Detailed Description
Connector Header Surface Mount, Right Angle 8 position 0.049" (1.25mm)
DataSheet
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
FI
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Receptacle
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
200V
Contact Material
Copper Alloy
Insulation Color
Beige
Insulation Height
0.071" (1.80mm)
Base Product Number
FI-S8
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions
8
Contact Finish - Post
Tin or Tin-Alloy
Current Rating (Amps)
1A per Contact
Operating Temperature
-40°C ~ 80°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Cable/Wire |
| Series | FI |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 200V |
| Contact Material | Copper Alloy |
| Insulation Color | Beige |
| Insulation Height | 0.071" (1.80mm) |
| Base Product Number | FI-S8 |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Positions | 8 |
| Contact Finish - Post | Tin or Tin-Alloy |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
