JAE Electronics MX34016UF1

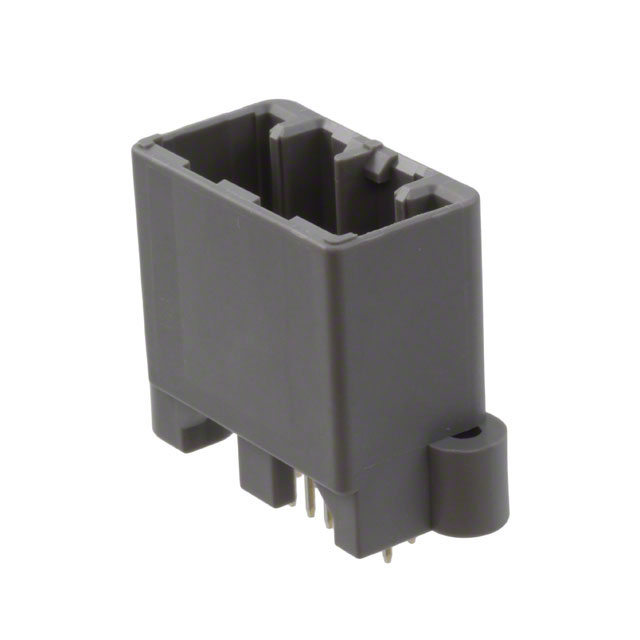

Image shown is a representation only
Manufacturer
Manufacturer No
MX34016UF1
Quantity
1040
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 16POS 2.2MM
Detailed Description
Connector Header Through Hole 16 position 0.087" (2.20mm)
DataSheet
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
MX34
Features
Mounting Flange
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.087" (2.20mm)
Contact Material
Brass
Insulation Color
Gray
Insulation Height
0.925" (23.50mm)
Base Product Number
MX34016U
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
Number of Positions
16
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 85°C
Mated Stacking Heights
29.95mm
Contact Finish - Mating
Tin
Contact Length - Mating
0.303" (7.70mm)
Number of Positions Loaded
All
