JAE Electronics MX77A032HF1

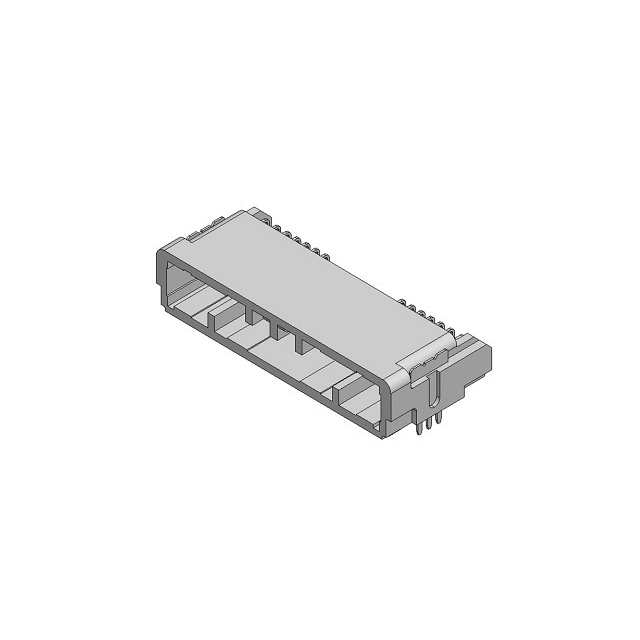

Image shown is a representation only
Manufacturer
Manufacturer No
MX77A032HF1
Quantity
35
Availability
In Stock
Packaging
Tray
Description
CONN PIN HDR 32 POS R/A SMT
Detailed Description
Connector Header Surface Mount, Right Angle 32 position
DataSheet
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
MX77
Features
Solder Retention
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.382" (9.70mm)
Base Product Number
MX77A
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Number of Positions
32
Row Spacing - Mating
0.116" (2.95mm)
Contact Finish - Post
Tin
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Cable/Wire |
| Series | MX77 |
| Features | Solder Retention |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.382" (9.70mm) |
| Base Product Number | MX77A |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Number of Positions | 32 |
| Row Spacing - Mating | 0.116" (2.95mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
