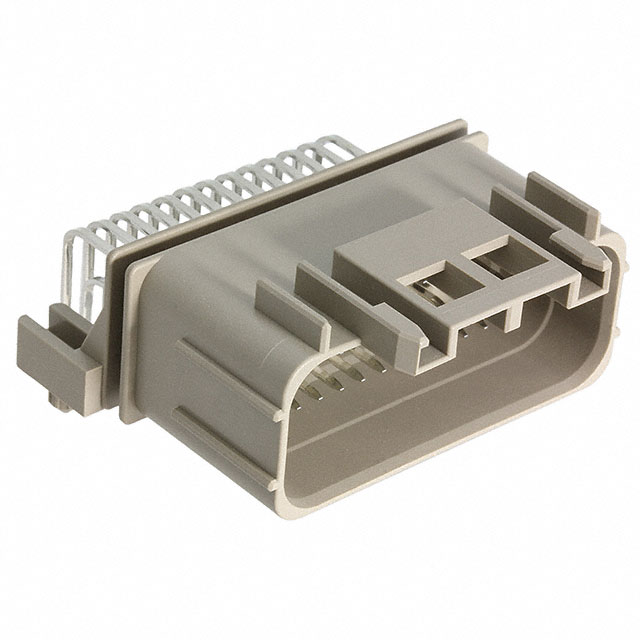

JAE Electronics MX47039NF2
Image shown is a representation only
Manufacturer
Manufacturer No
MX47039NF2
Packaging
Bulk
Description
CONN HEADER R/A 39POS 2.5MM
Detailed Description
Connector Header Through Hole, Right Angle 39 position 0.098" (2.50mm)
DataSheet
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
MX47
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
3
Pitch - Mating
0.098" (2.50mm)
Contact Material
Brass
Insulation Color
Gray
Insulation Height
0.760" (19.30mm)
Ingress Protection
Waterproof
Base Product Number
MX47039N
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
39
Row Spacing - Mating
0.142" (3.60mm)
Contact Finish - Post
Tin
Contact Length - Post
0.138" (3.50mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Cable/Wire |
| Series | MX47 |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 3 |
| Pitch - Mating | 0.098" (2.50mm) |
| Contact Material | Brass |
| Insulation Color | Gray |
| Insulation Height | 0.760" (19.30mm) |
| Ingress Protection | Waterproof |
| Base Product Number | MX47039N |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 39 |
| Row Spacing - Mating | 0.142" (3.60mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.138" (3.50mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
