Step1: Product

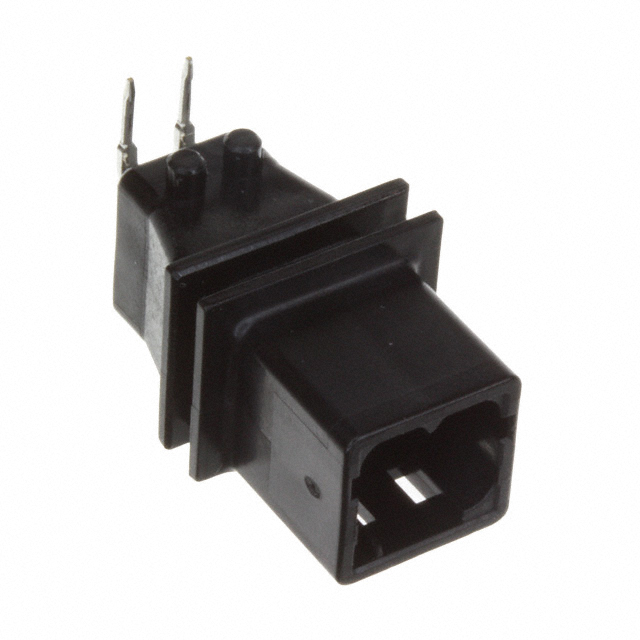

JAE Electronics MX44002NF1
Image shown is a representation only
Manufacturer
Manufacturer No
MX44002NF1
Quantity
10
Availability
In Stock
Packaging
Tray
Description
CONN HEADER BRD EDGE 2POS 3.5MM
Detailed Description
Connector Header Board Edge, Through Hole, Right Angle 2 position 0.138" (3.50mm)
DataSheet
Mfr
JAE Electronics
Style
Board to Cable/Wire
Series
MX44
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.138" (3.50mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.465" (11.80mm)
Ingress Protection
Waterproof
Base Product Number
MX44002N
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
2
Contact Finish - Post
Tin
Contact Length - Post
0.122" (3.10mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | JAE Electronics |
| Style | Board to Cable/Wire |
| Series | MX44 |
| Features | Board Guide |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.138" (3.50mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.465" (11.80mm) |
| Ingress Protection | Waterproof |
| Base Product Number | MX44002N |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122" (3.10mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
