Step1: Product
IXYS CS23-16IO2

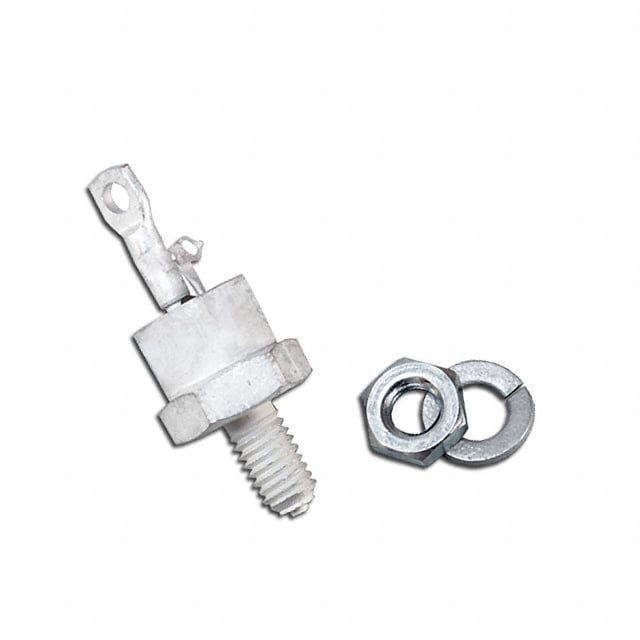

Image shown is a representation only
Manufacturer
Manufacturer No
CS23-16IO2
Package
TO-208AA, TO-48-3, Stud
Packaging
Bulk
Description
SCR 1.6KV 50A TO-208AA (TO-48)
Detailed Description
SCR 1.6 kV 50 A Standard Recovery Chassis, Stud Mount TO-208AA (TO-48)
DataSheet
SCR Type
Standard Recovery
Packaging
Bulk
Part Status
Obsolete
Manufacturer
IXYS
Mounting Type
Chassis, Stud Mount
Package / Case
TO-208AA, TO-48-3, Stud
Base Product Number
CS23
Voltage - Off State
1.6 kV
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
TO-208AA (TO-48)
Current - Hold (Ih) (Max)
100 mA
Current - Off State (Max)
3 mA
Voltage - On State (Vtm) (Max)
1.8 V
Current - Gate Trigger (Igt) (Max)
50 mA
Current - On State (It (AV)) (Max)
32 A
Voltage - Gate Trigger (Vgt) (Max)
2.5 V
Current - On State (It (RMS)) (Max)
50 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
450A, 480A
| Attribute | Value |
|---|---|
| SCR Type | Standard Recovery |
| Packaging | Bulk |
| Part Status | Obsolete |
| Manufacturer | IXYS |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | TO-208AA, TO-48-3, Stud |
| Base Product Number | CS23 |
| Voltage - Off State | 1.6 kV |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | TO-208AA (TO-48) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Off State (Max) | 3 mA |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - On State (It (AV)) (Max) | 32 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 50 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 450A, 480A |
