Challenge Electronics CS23-02P100-03-1X

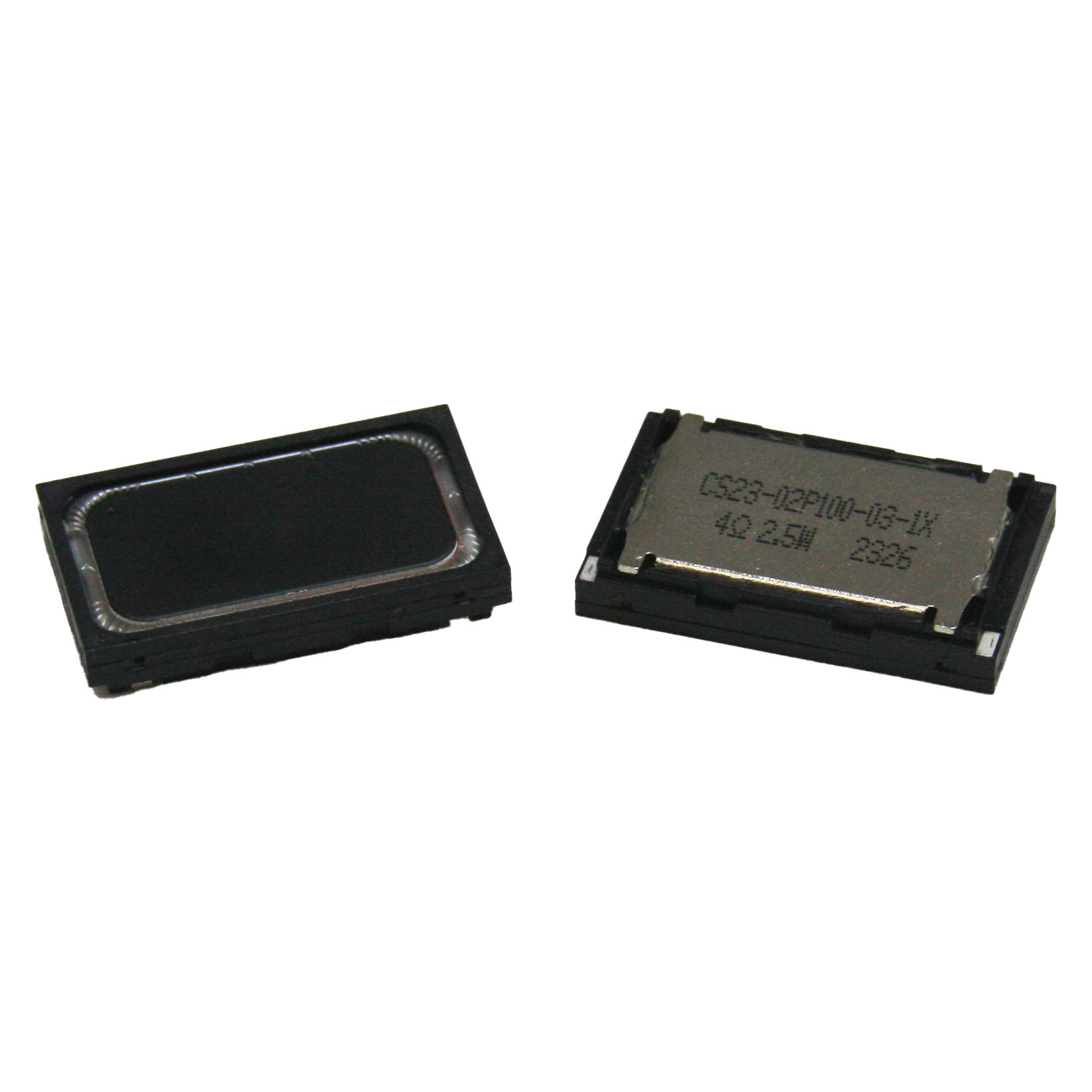

Image shown is a representation only
Manufacturer
Manufacturer No
CS23-02P100-03-1X
Packaging
Tray
Description
SPEAKER 4OHM 2.5W 105.5DB
Detailed Description
4 Ohms General Purpose Speaker 2.5 W 800 Hz ~ 20 kHz Top Rectangular
DataSheet
Type
General Purpose
Shape
Rectangular
Impedance
4 Ohms
Packaging
Tray
Technology
Magnetic
Part Status
Active
Power - Max
2.7 W
Termination
Solder Pads
Manufacturer
Challenge Electronics
Port Location
Top
Power - Rated
2.5 W
Frequency Range
800 Hz ~ 20 kHz
Material - Cone
Polyetheretherketone (PEEK)
Efficiency - dBA
105.50
Size / Dimension
0.906" L x 0.551" W (23.00mm x 14.00mm)
Distortion Rating
10% Max @ 2kHz, 2.5W
Efficiency - Type
Sound Pressure Level (SPL)
Material - Magnet
Nd-Fe-B
Ingress Protection
IPX8
Efficiency - Testing
2.5W/10cm
Height - Seated (Max)
0.146" (3.70mm)
Operating Temperature
-20°C ~ 70°C
Frequency - Self Resonant
1kHz
| Attribute | Value |
|---|---|
| Type | General Purpose |
| Shape | Rectangular |
| Impedance | 4 Ohms |
| Packaging | Tray |
| Technology | Magnetic |
| Part Status | Active |
| Power - Max | 2.7 W |
| Termination | Solder Pads |
| Manufacturer | Challenge Electronics |
| Port Location | Top |
| Power - Rated | 2.5 W |
| Frequency Range | 800 Hz ~ 20 kHz |
| Material - Cone | Polyetheretherketone (PEEK) |
| Efficiency - dBA | 105.50 |
| Size / Dimension | 0.906" L x 0.551" W (23.00mm x 14.00mm) |
| Distortion Rating | 10% Max @ 2kHz, 2.5W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IPX8 |
| Efficiency - Testing | 2.5W/10cm |
| Height - Seated (Max) | 0.146" (3.70mm) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency - Self Resonant | 1kHz |
