Step1: Product

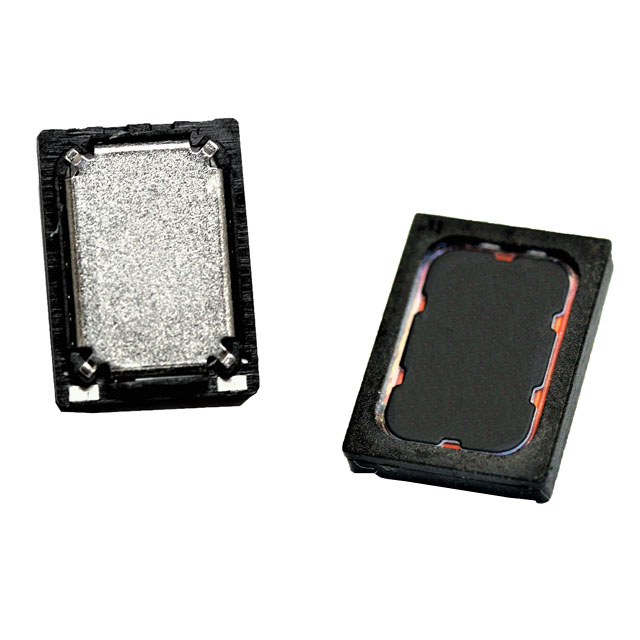

Challenge Electronics CS15-01P95-03-1X
Image shown is a representation only
Manufacturer
Manufacturer No
CS15-01P95-03-1X
Packaging
Tray
Description
SPEAKER 8OHM 1W TOP PORT 97DB
Detailed Description
8 Ohms General Purpose Speaker 1 W 760 Hz ~ 20 kHz Top Rectangular
DataSheet
Type
General Purpose
Shape
Rectangular
Impedance
8 Ohms
Packaging
Tray
Technology
Magnetic
Part Status
Active
Power - Max
1.3 W
Termination
Solder Pads
Manufacturer
Challenge Electronics
Port Location
Top
Power - Rated
1 W
Frequency Range
760 Hz ~ 20 kHz
Material - Cone
Polyetheretherketone (PEEK)
Efficiency - dBA
97.00
Size / Dimension
0.591" L x 0.433" W (15.00mm x 11.00mm)
Efficiency - Type
Sound Pressure Level (SPL)
Material - Magnet
Nd-Fe-B
Ingress Protection
IP67 - Dust Tight, Waterproof
Efficiency - Testing
1W/100mm
Height - Seated (Max)
0.138" (3.50mm)
Frequency - Self Resonant
950Hz
| Attribute | Value |
|---|---|
| Type | General Purpose |
| Shape | Rectangular |
| Impedance | 8 Ohms |
| Packaging | Tray |
| Technology | Magnetic |
| Part Status | Active |
| Power - Max | 1.3 W |
| Termination | Solder Pads |
| Manufacturer | Challenge Electronics |
| Port Location | Top |
| Power - Rated | 1 W |
| Frequency Range | 760 Hz ~ 20 kHz |
| Material - Cone | Polyetheretherketone (PEEK) |
| Efficiency - dBA | 97.00 |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Efficiency - Testing | 1W/100mm |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Frequency - Self Resonant | 950Hz |
