Step1: Product

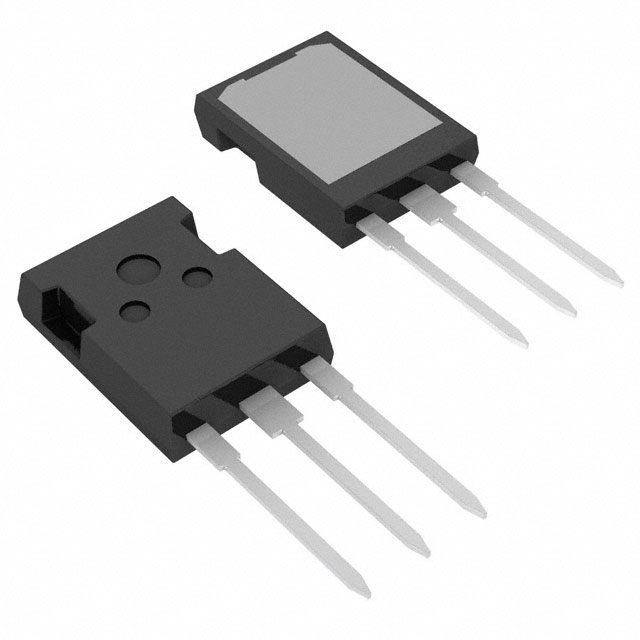

IXYS CLA80E1200HF
Image shown is a representation only
Manufacturer
Manufacturer No
CLA80E1200HF
Quantity
60
Availability
In Stock
Package
TO-247-3 Variant
Packaging
Tube
Description
SCR 1.2KV 126A PLUS247-3
Detailed Description
SCR 1.2 kV 126 A Standard Recovery Through Hole PLUS247™-3
DataSheet
SCR Type
Standard Recovery
Packaging
Tube
Part Status
Active
Manufacturer
IXYS
Mounting Type
Through Hole
Package / Case
TO-247-3 Variant
Base Product Number
CLA80
Voltage - Off State
1.2 kV
Operating Temperature
-40°C ~ 150°C
Supplier Device Package
PLUS247™-3
Current - Hold (Ih) (Max)
100 mA
Current - Off State (Max)
50 µA
Voltage - On State (Vtm) (Max)
1.77 V
Current - Gate Trigger (Igt) (Max)
38 mA
Current - On State (It (AV)) (Max)
80 A
Voltage - Gate Trigger (Vgt) (Max)
1.5 V
Current - On State (It (RMS)) (Max)
126 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
900A, 970A
| Attribute | Value |
|---|---|
| SCR Type | Standard Recovery |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | IXYS |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Base Product Number | CLA80 |
| Voltage - Off State | 1.2 kV |
| Operating Temperature | -40°C ~ 150°C |
| Supplier Device Package | PLUS247™-3 |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Off State (Max) | 50 µA |
| Voltage - On State (Vtm) (Max) | 1.77 V |
| Current - Gate Trigger (Igt) (Max) | 38 mA |
| Current - On State (It (AV)) (Max) | 80 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 126 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 900A, 970A |
