Step1: Product

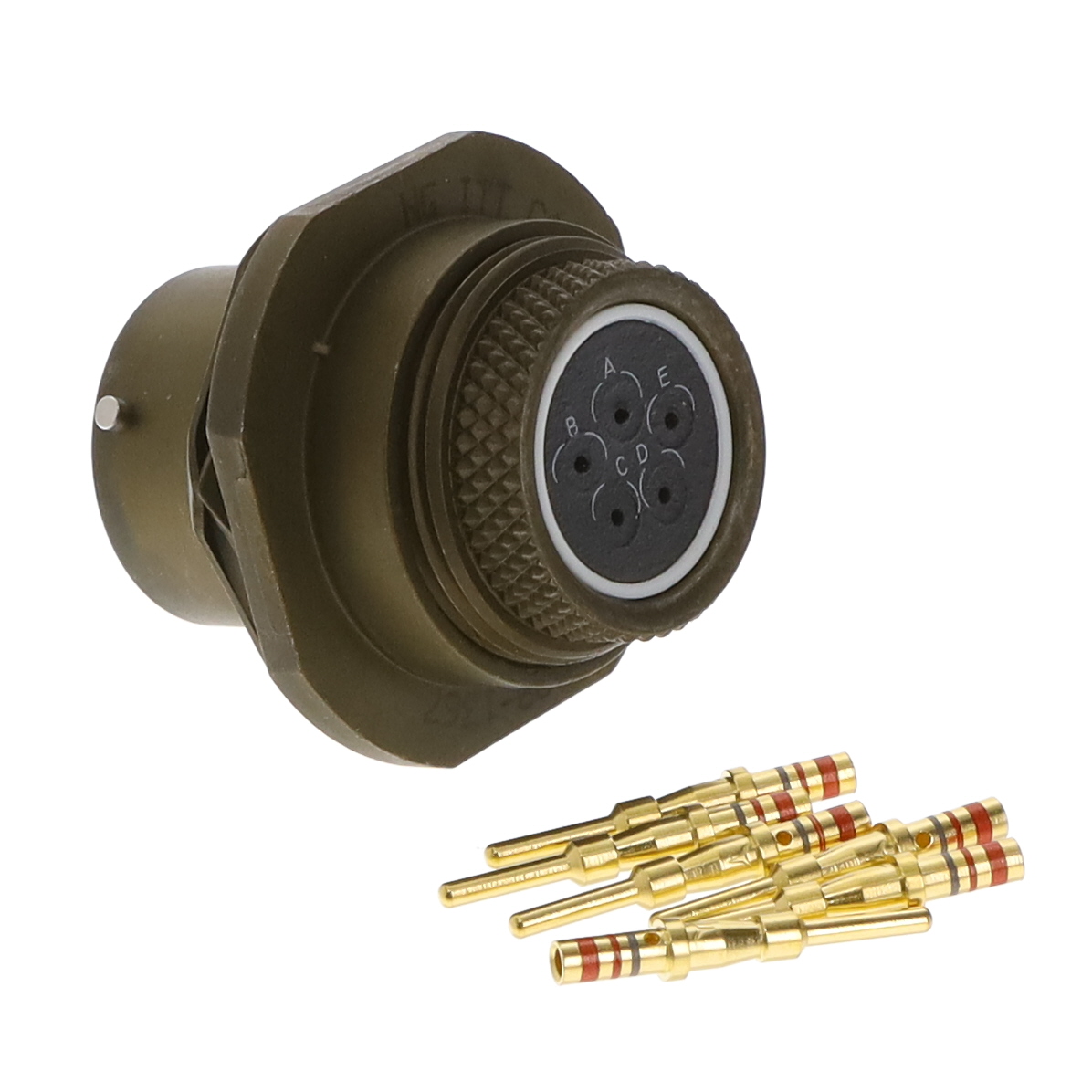

ITT Cannon, LLC KPSE07E14-5P
Image shown is a representation only
Manufacturer
Manufacturer No
KPSE07E14-5P
Packaging
Bag
Description
26482 - STYLE SERIES I & MIL BAT
Detailed Description
5 Position Circular Connector Receptacle, Male Pins Crimp
DataSheet
Mfr
ITT Cannon, LLC
Color
Olive Drab
Series
KPSE
Features
Backshell
Packaging
Bag
Orientation
N (Normal)
Part Status
Active
Termination
Crimp
Shell Finish
Olive Drab Cadmium
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum Alloy
Voltage Rating
1000VAC, 1400VDC
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
5
Shell Size - Insert
14-5
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | ITT Cannon, LLC |
| Color | Olive Drab |
| Series | KPSE |
| Features | Backshell |
| Packaging | Bag |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Crimp |
| Shell Finish | Olive Drab Cadmium |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 1000VAC, 1400VDC |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 5 |
| Shell Size - Insert | 14-5 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
